Pinout Values and Diagnostic Parameters

CRUISE CONTROL: CRUISE CONTROL SYSTEM (for Hatchback): TERMINALS OF ECM

1. CHECK ECM

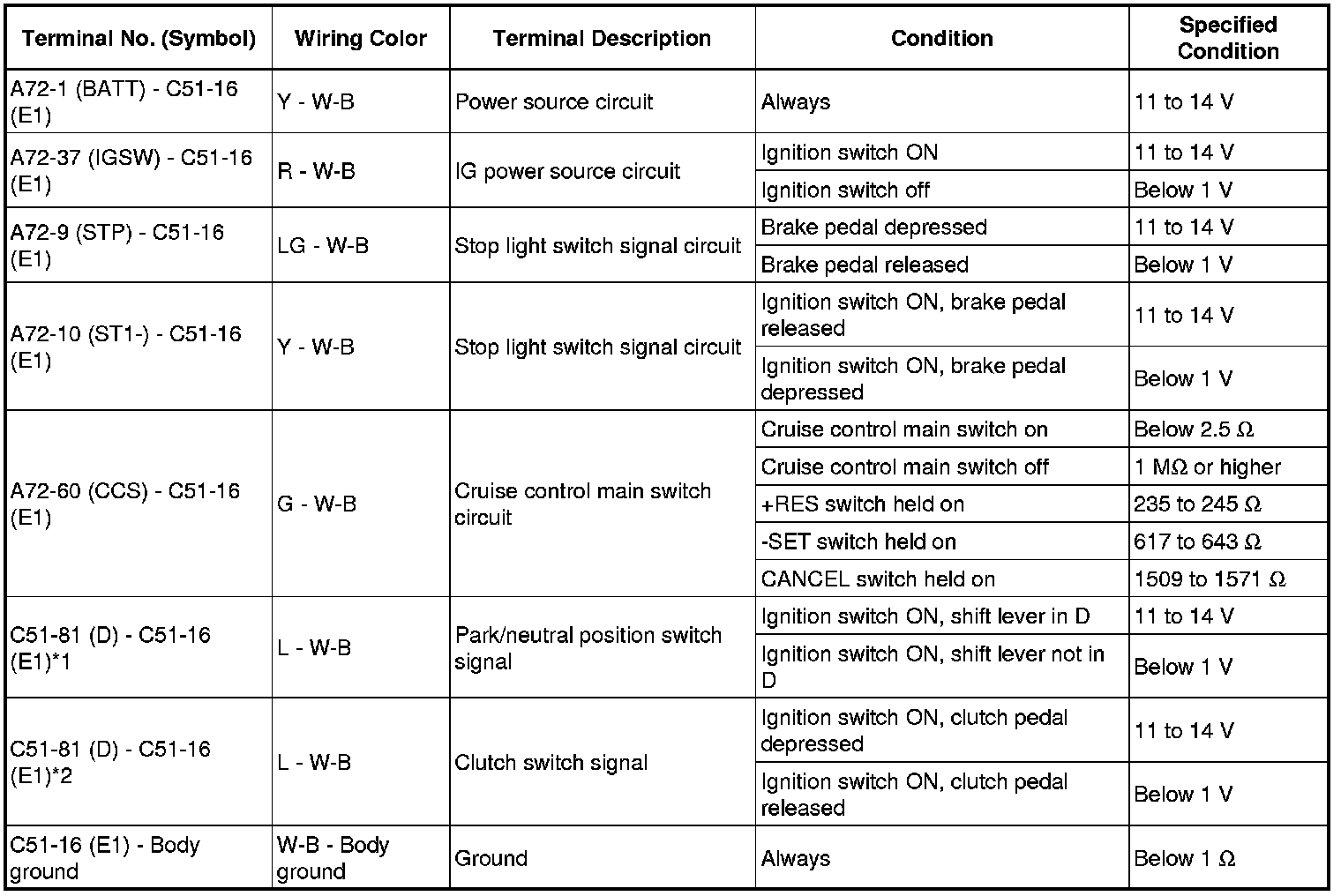

(a) Measure the voltage and resistance according to the value(s) in the table below.





* *1: for Automatic Transaxle

* *2: for Manual Transaxle
