72-75 - Position of Parts In Engine Compartment

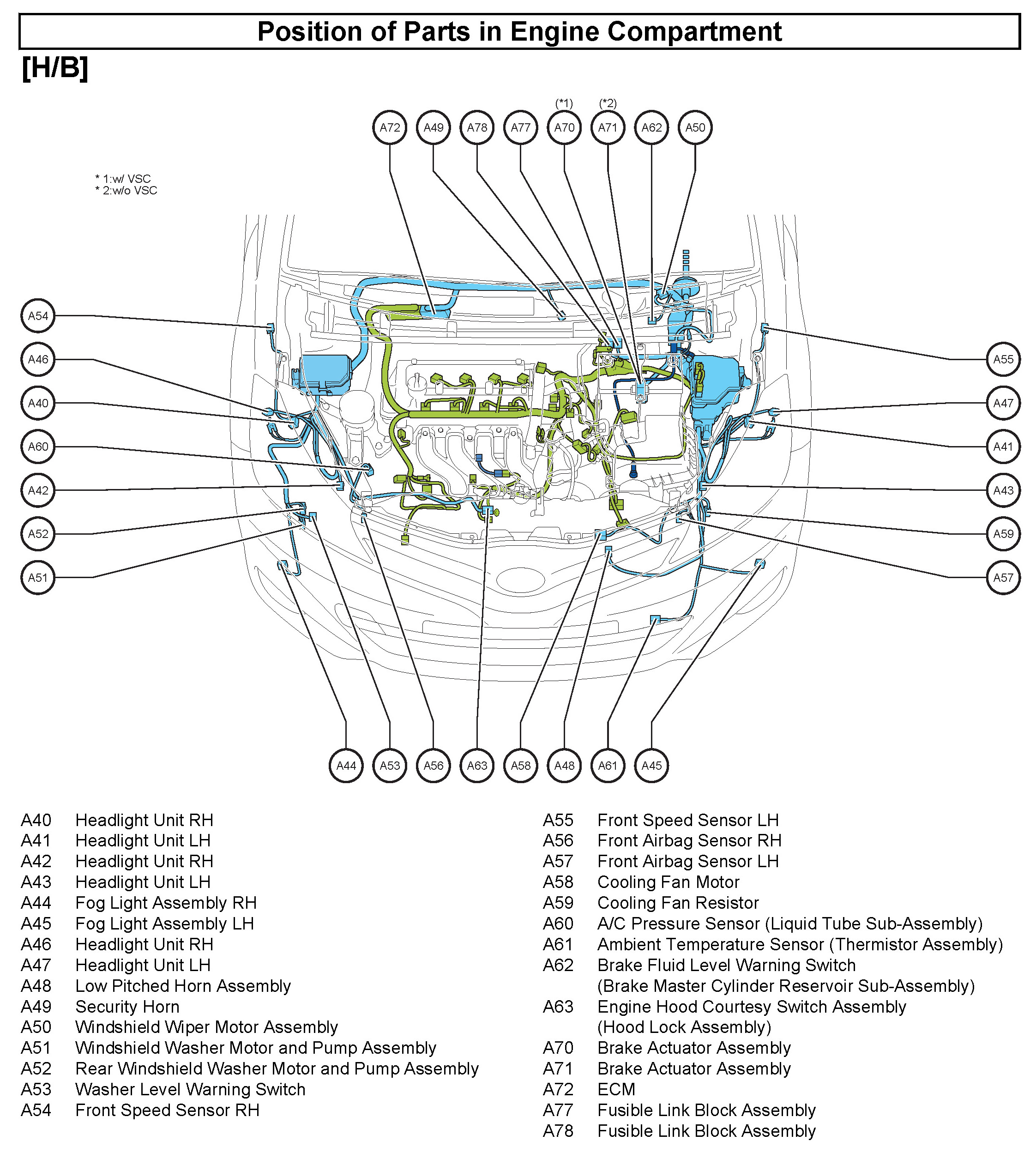

72 - Position of Parts in Engine Compartment:

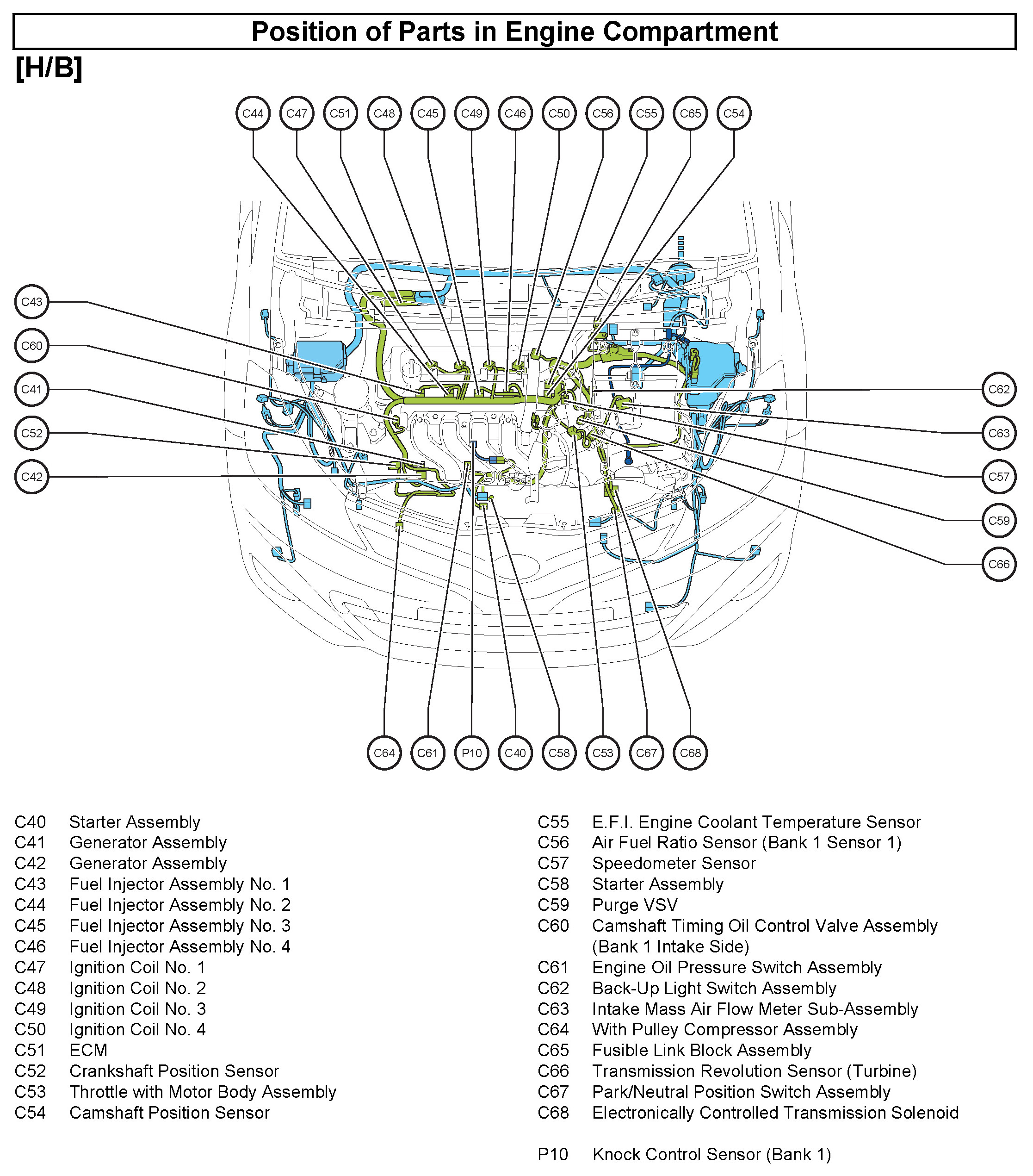

73 - Position of Parts in Engine Compartment:
