76-81 - Position of Parts In Instrument Panel
76-81 - Position of Parts In Instrument Panel

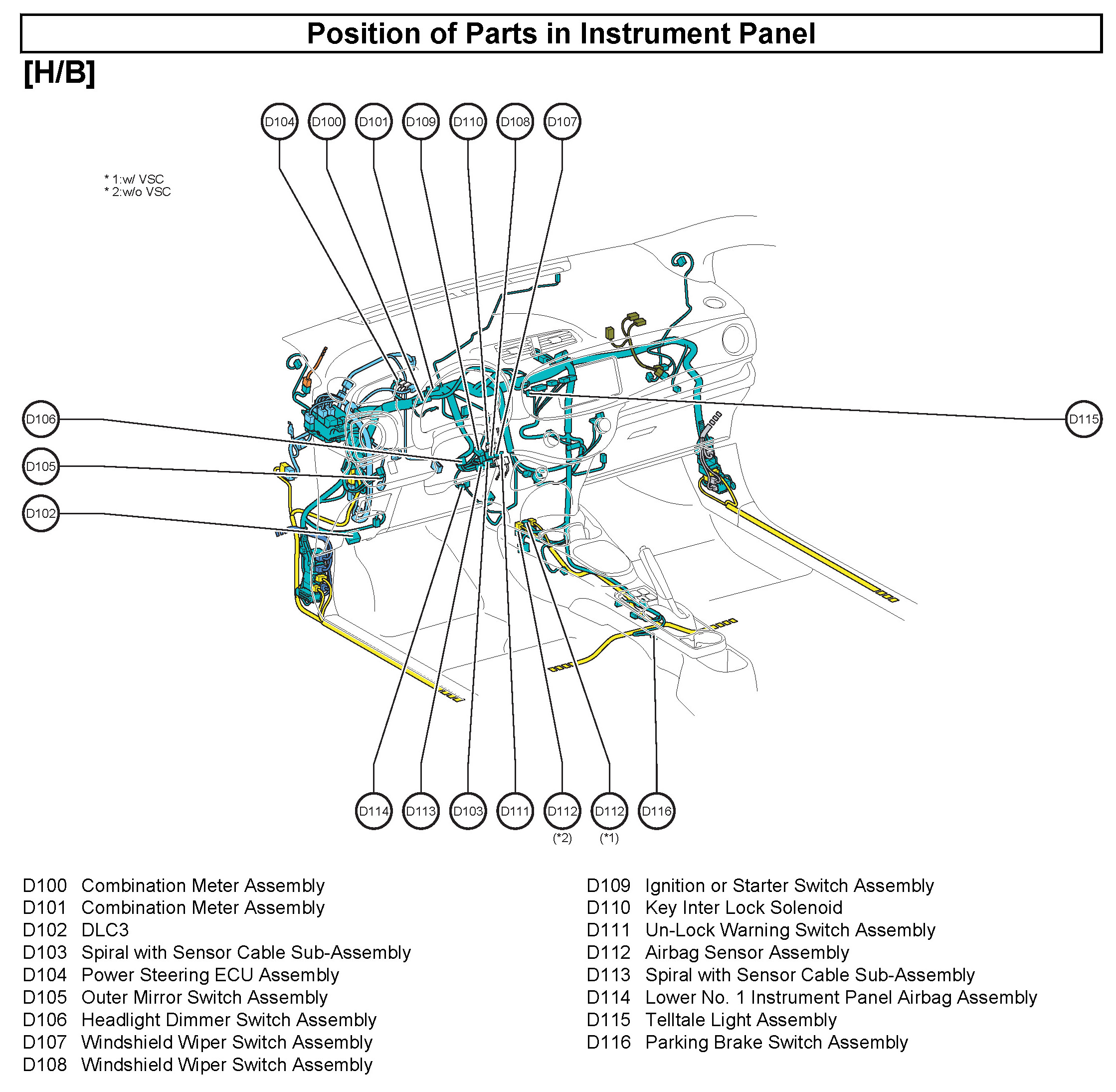

76 - Position of Parts in Instrument Panel:

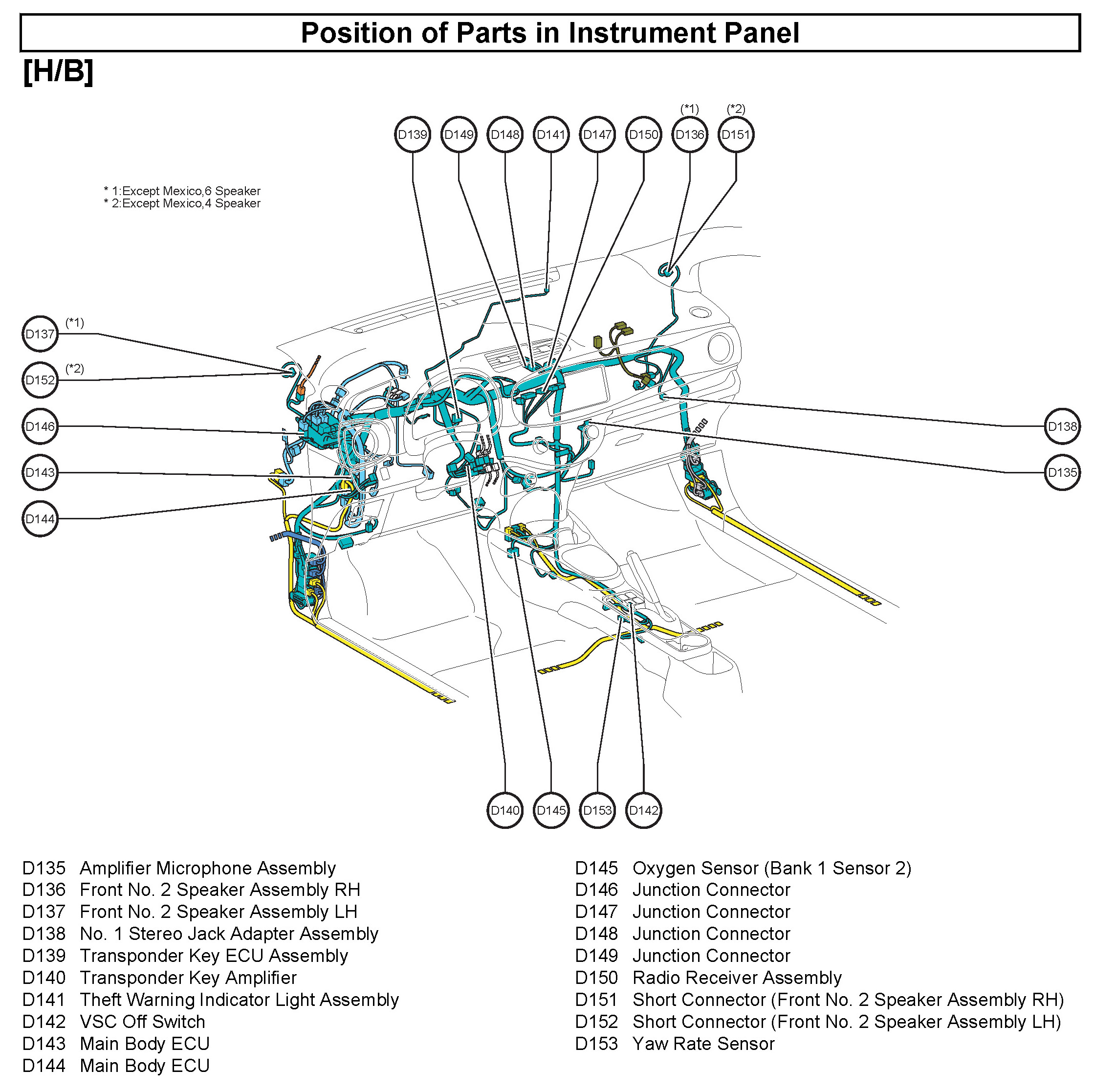

77 - Position of Parts in Instrument Panel:

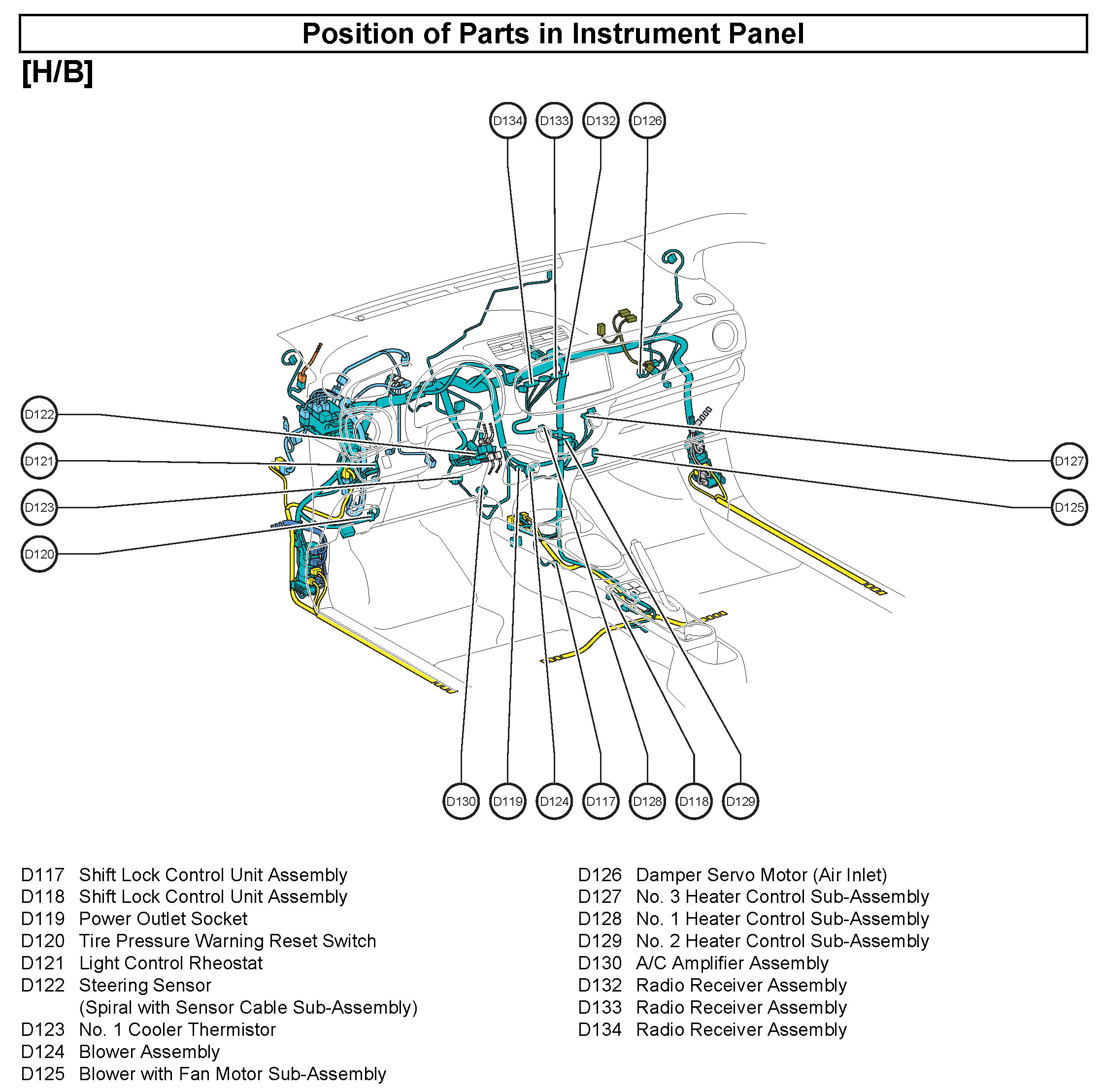

78 - Position of Parts in Instrument Panel:
79 - Position of Parts in Instrument Panel:
