Diagrams
>>
Connectors
Connectors

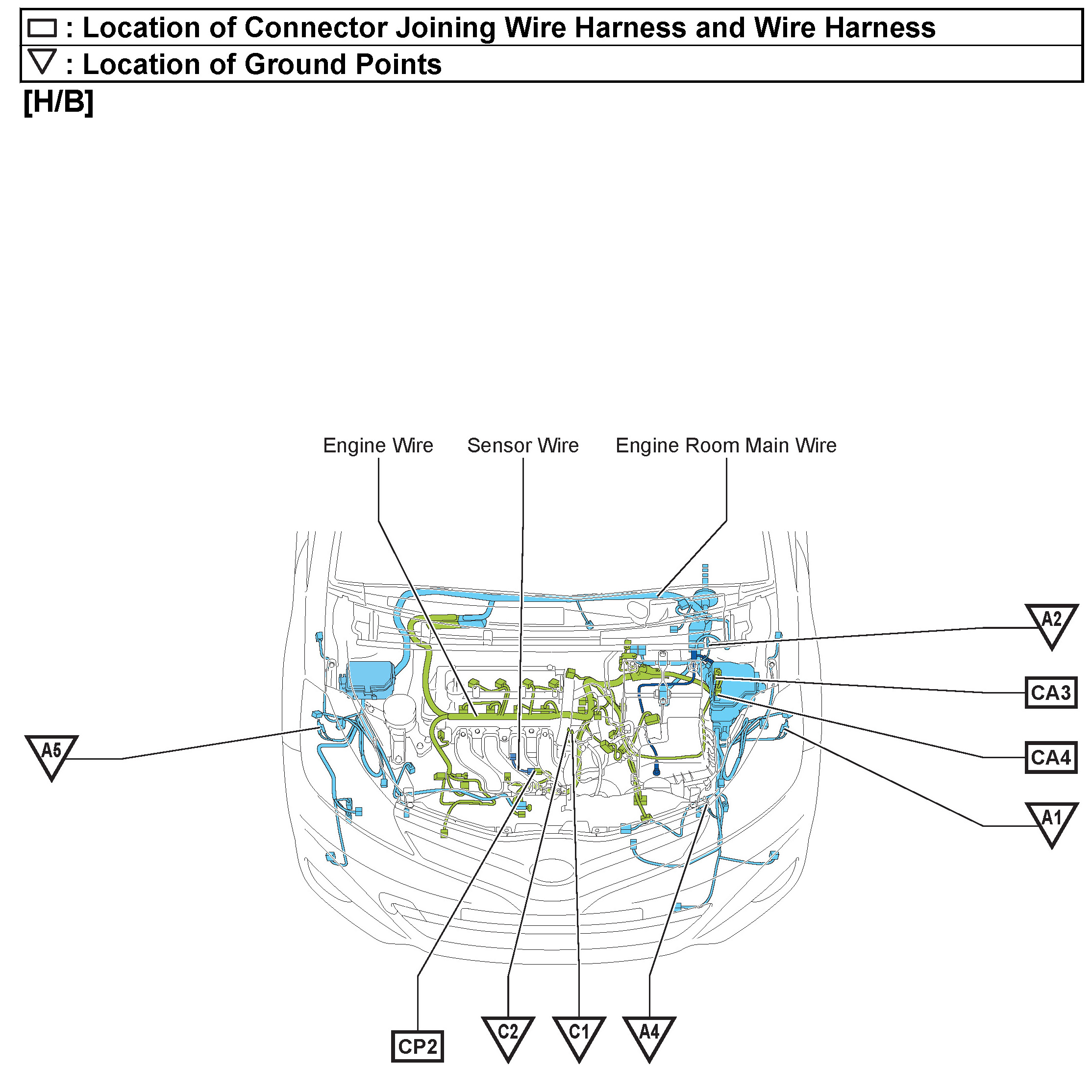

90 - A1-C2 / CA3-CP2:
92 - AD6-KD1:

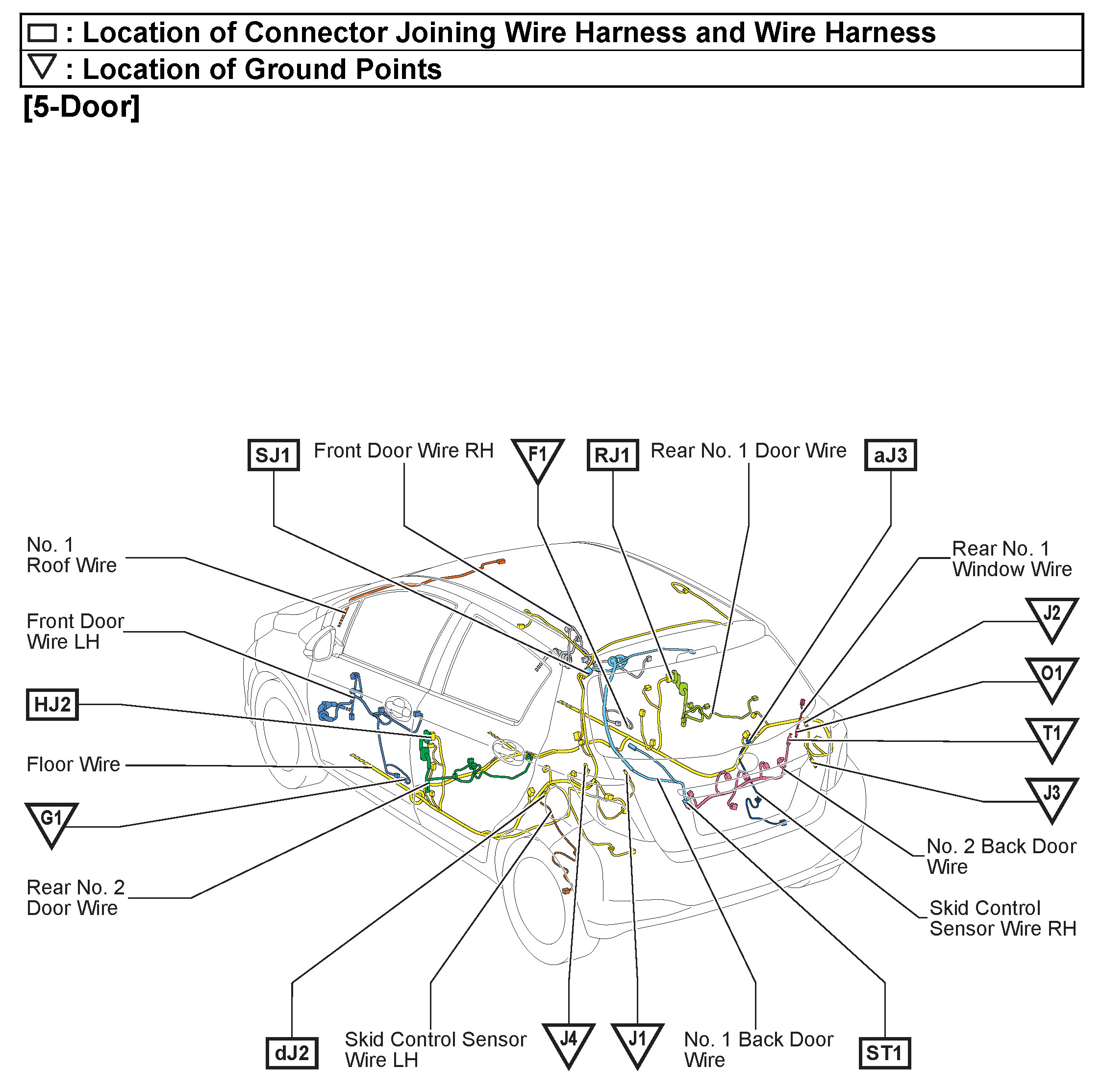

[5-Door]
94 - G1-T1 / aJ3-ST1:
[3-Door]
95 - G1-T1 / aJ3-ST1:

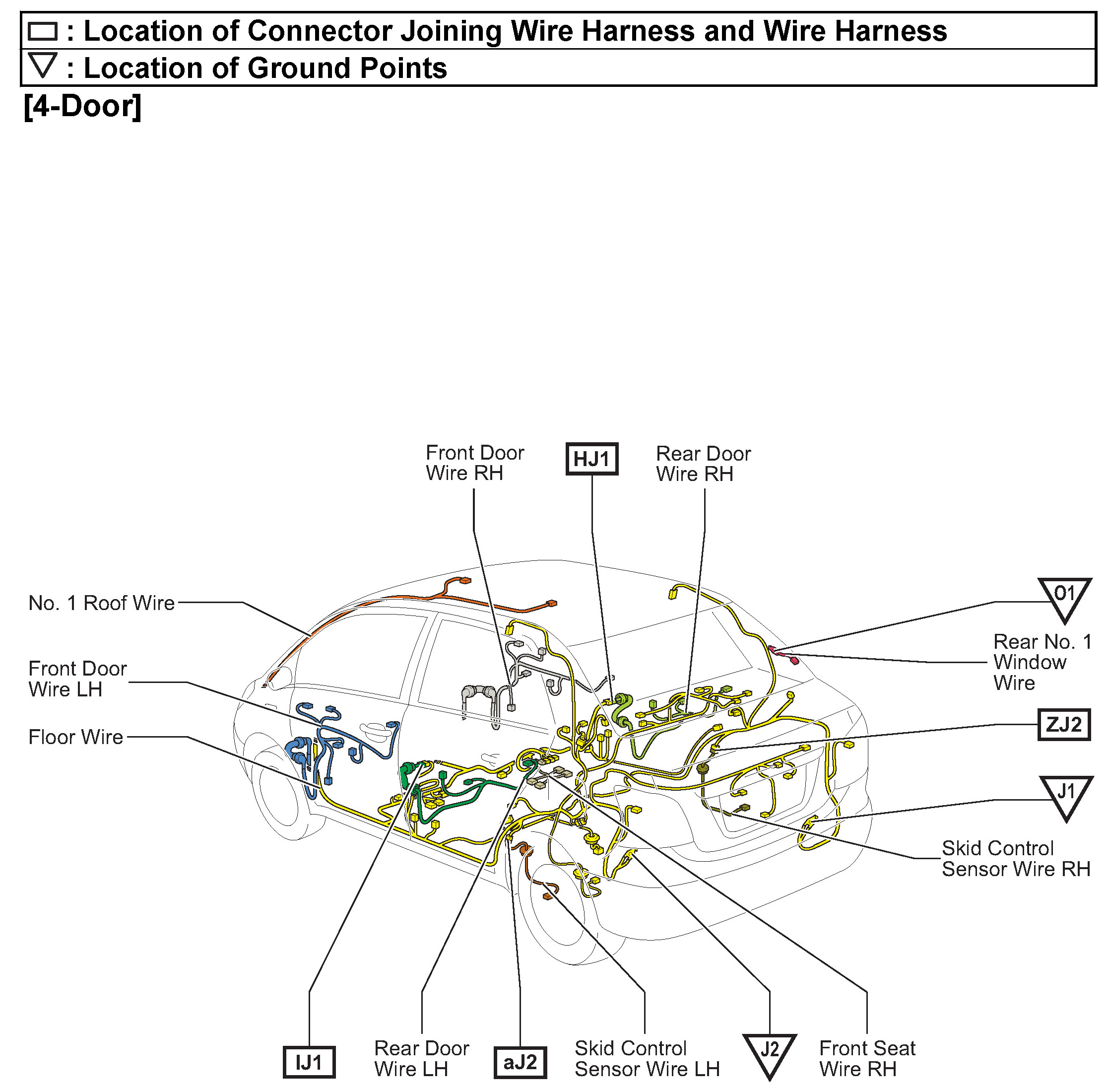

[4-Door]
96 - J1-O1 / aJ2-ZJ2:

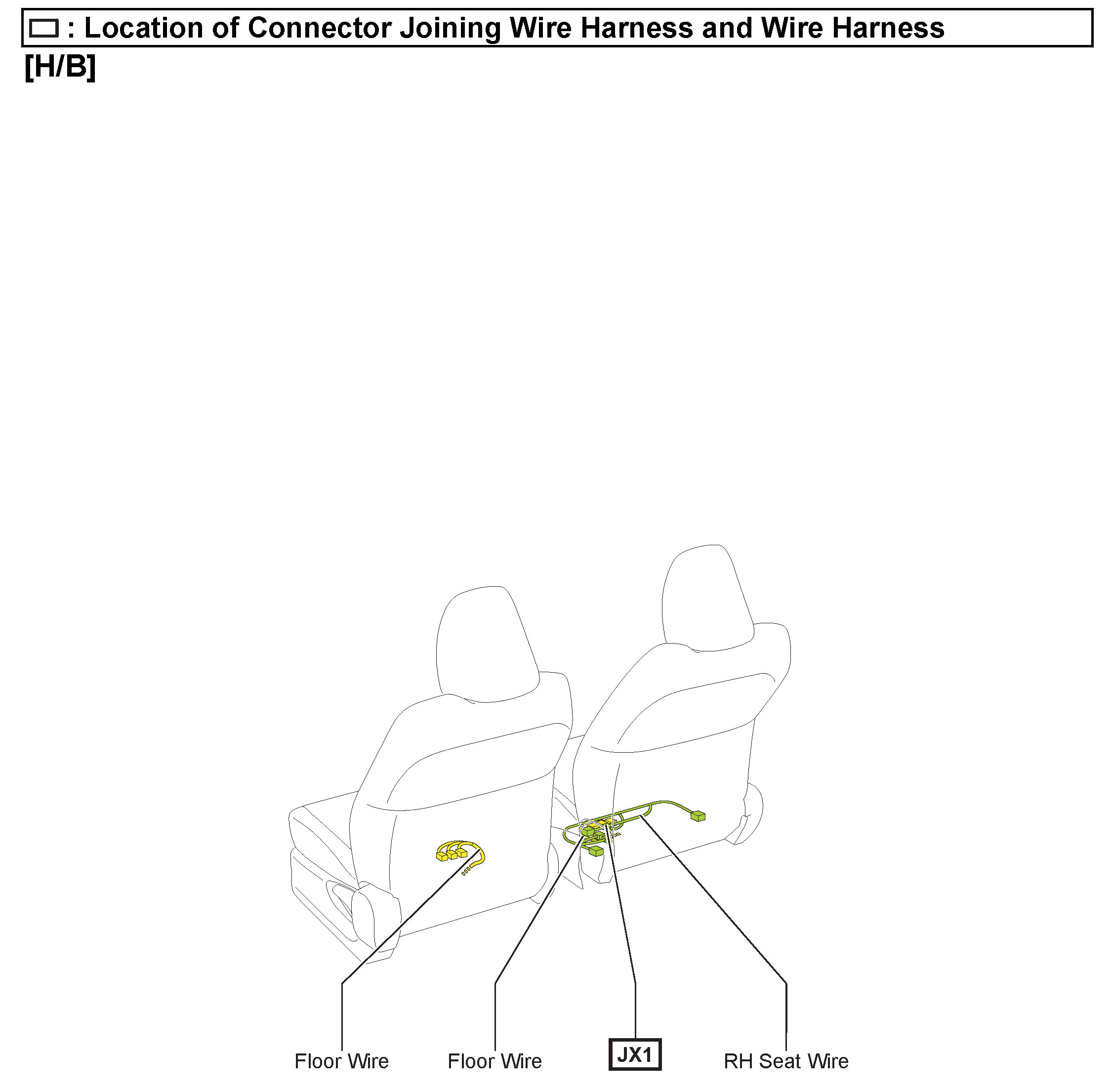

97 - JX1:
