Blower Motor: Testing and Inspection

HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR (for Hatchback): INSPECTION

1. INSPECT BLOWER MOTOR WITH FAN SUB-ASSEMBLY

(a) Apply battery voltage to the blower motor with fan sub-assembly and check the operation of the motor.





Text in Illustration

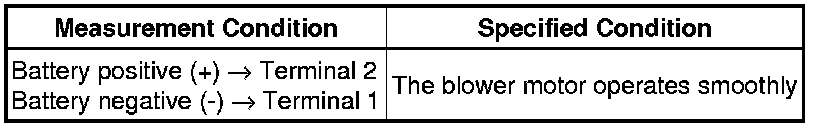

OK:





* If the result is not as specified, replace the blower motor with fan sub-assembly.
