Cabin Air Filter / Purifier: Service and Repair

Air conditioning filter

The air conditioning filter must be changed regularly to maintain air conditioning efficiency.

Replacement method

1 Turn the engine switch to the "LOCK" position.

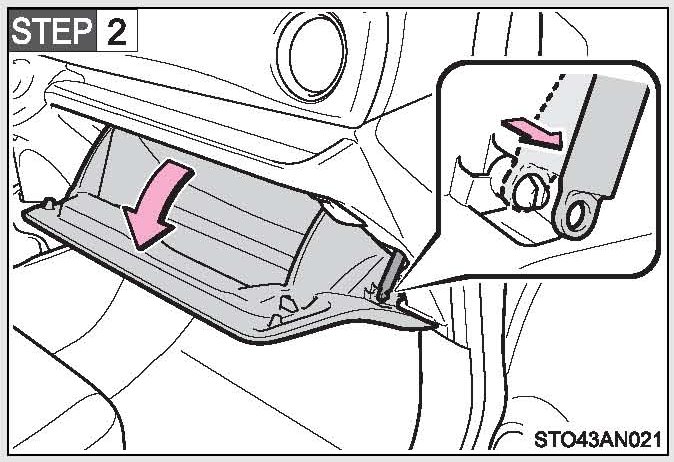

2 Open the glove box. Slide off the damper.

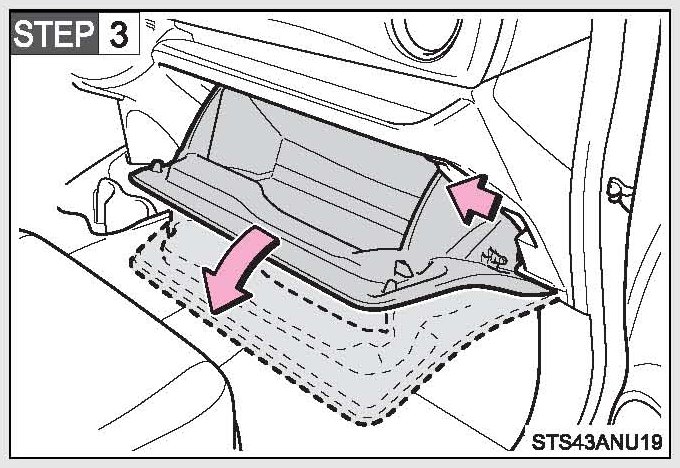

3 Press the outer facing side of the glove box to disconnect the upper claws.

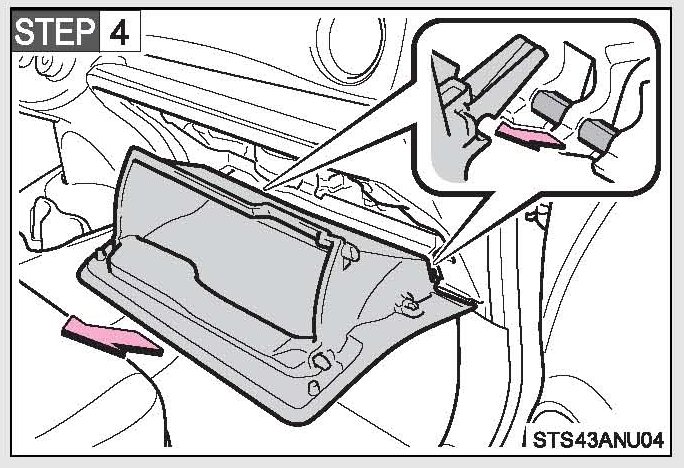

4 Pull out the glove box and disconnect the lower claws.

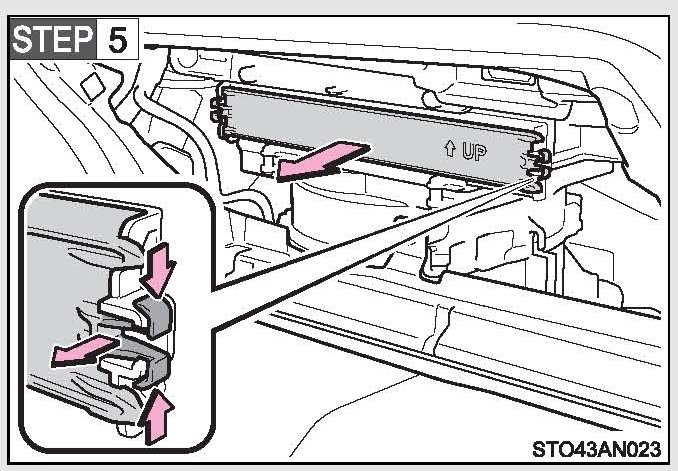

5 Remove the filter cover.

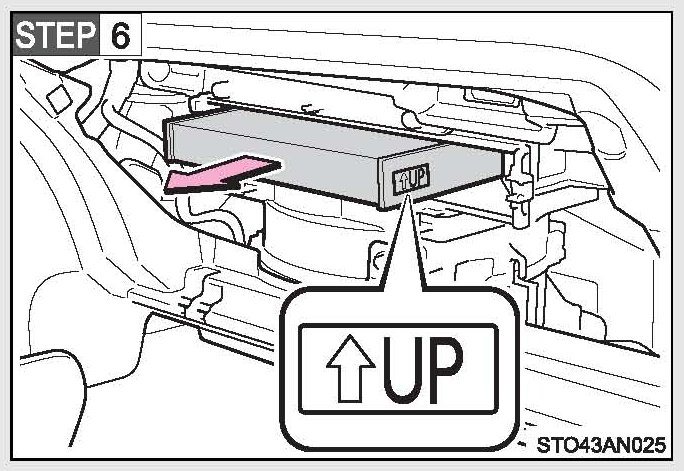

6 Remove the air conditioning filter and replace it with a new one.






The "UP" marks shown on the filter should be pointing up.


Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, replacement may be required. (For scheduled maintenance information, please refer to the "Scheduled Maintenance Guide" or "Owner's Manual Supplement".)

If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

NOTICE
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
