Compressor Clutch Relay: Testing and Inspection

HEATING / AIR CONDITIONING: RELAY (for Hatchback): ON-VEHICLE INSPECTION

1. INSPECT HEATER BLOWER MOTOR RELAY ASSEMBLY

(a) Check the resistance.





(1) Measure the resistance according to the value(s) in the table below.

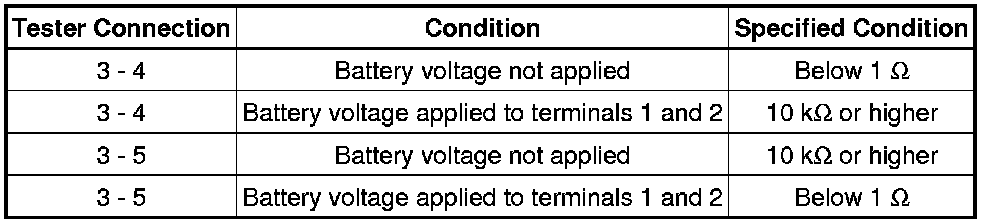

Standard Resistance:





* If the result is not as specified, replace the heater blower motor relay.
