System Description (from 07/2011)

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Hatchback): SYSTEM DESCRIPTION

1. GENERAL (w/ Cooler)

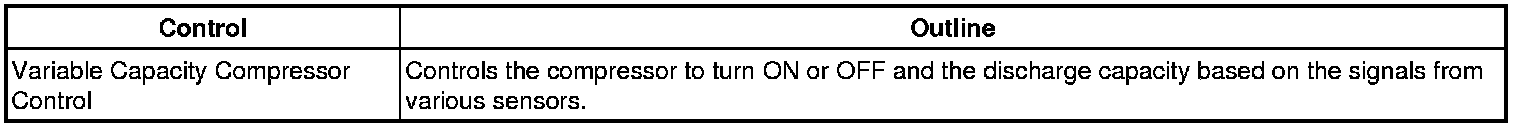

The air conditioning system has the following controls:





2. MODE POSITION AND DAMPER OPERATION

(a) Mode position and damper operation

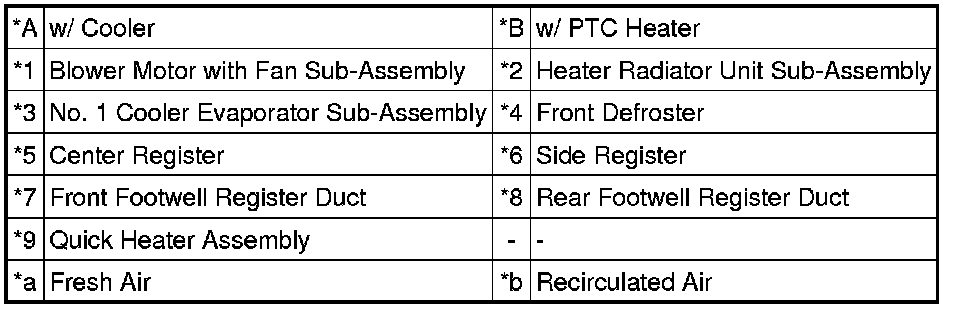

Text in Illustration





HINT

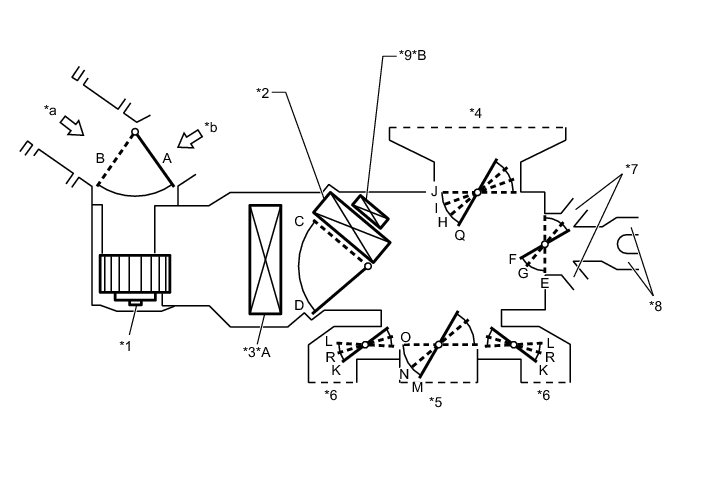

This Illustration is damper operation image. The number and location of the dampers is different to the actual unit.

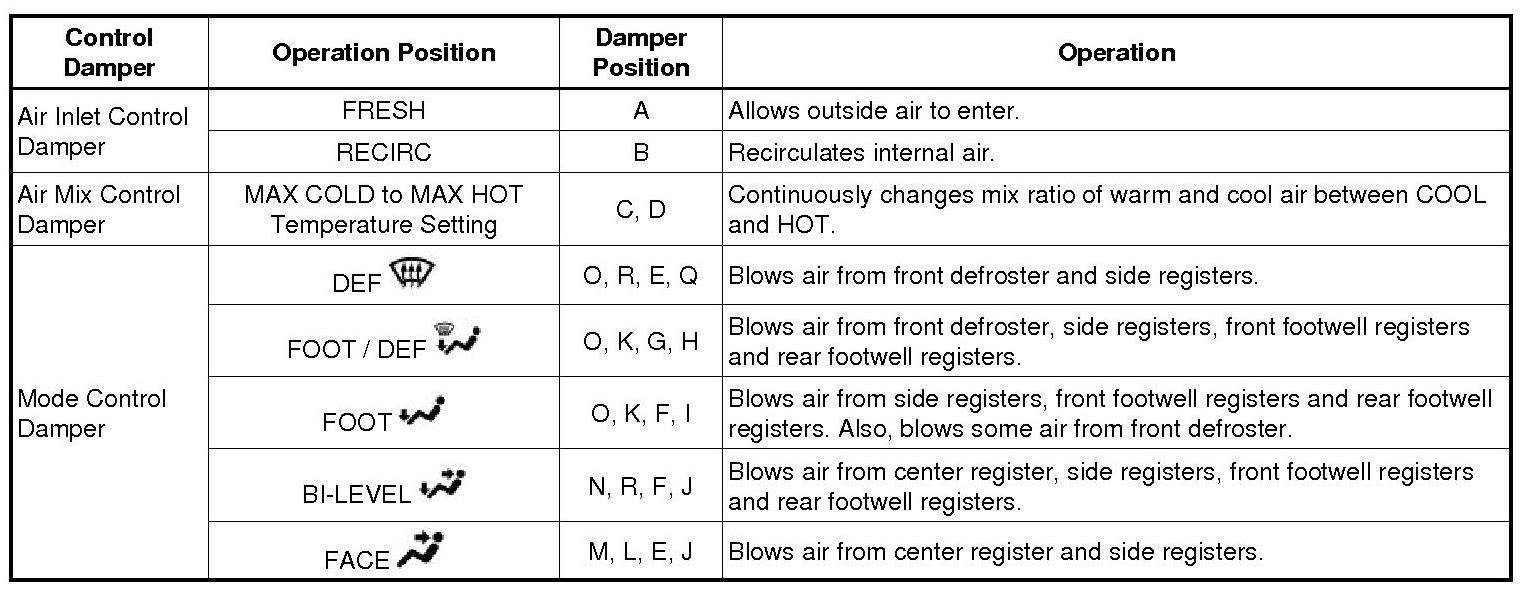

Functions of Main Dampers

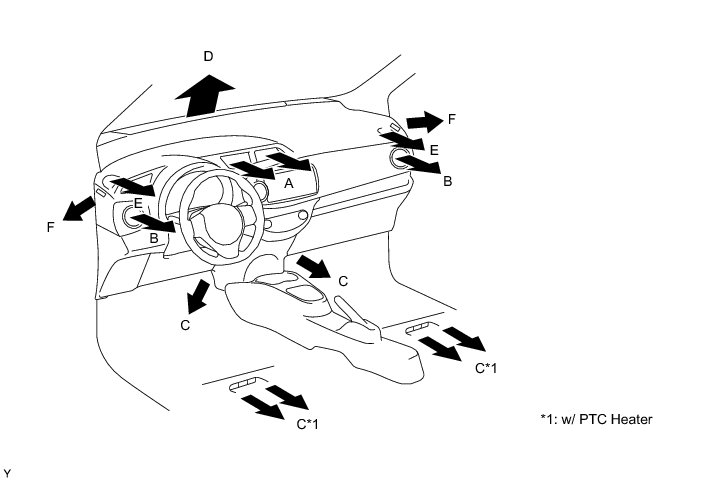

3. AIR OUTLET AND AIRFLOW VOLUME

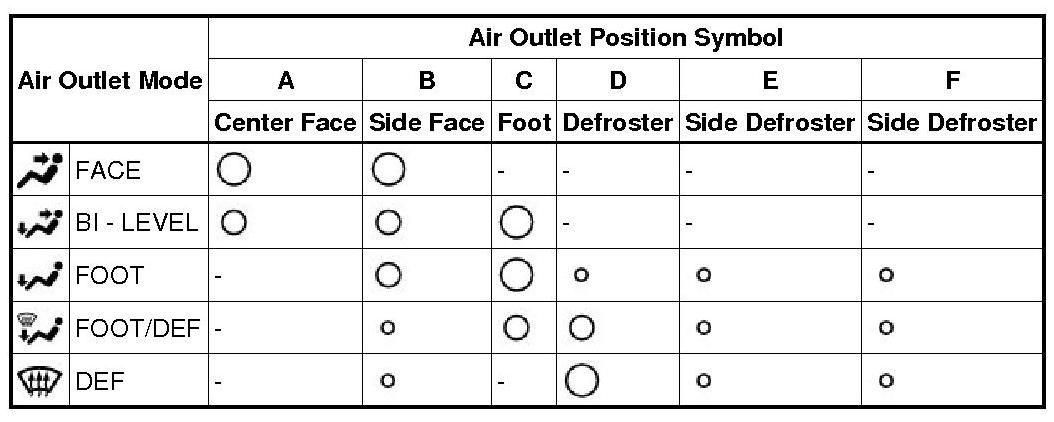

The size of the circle o indicates the proportion of airflow volume.
