System Diagram (from 07/2011)

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Hatchback): SYSTEM DIAGRAM

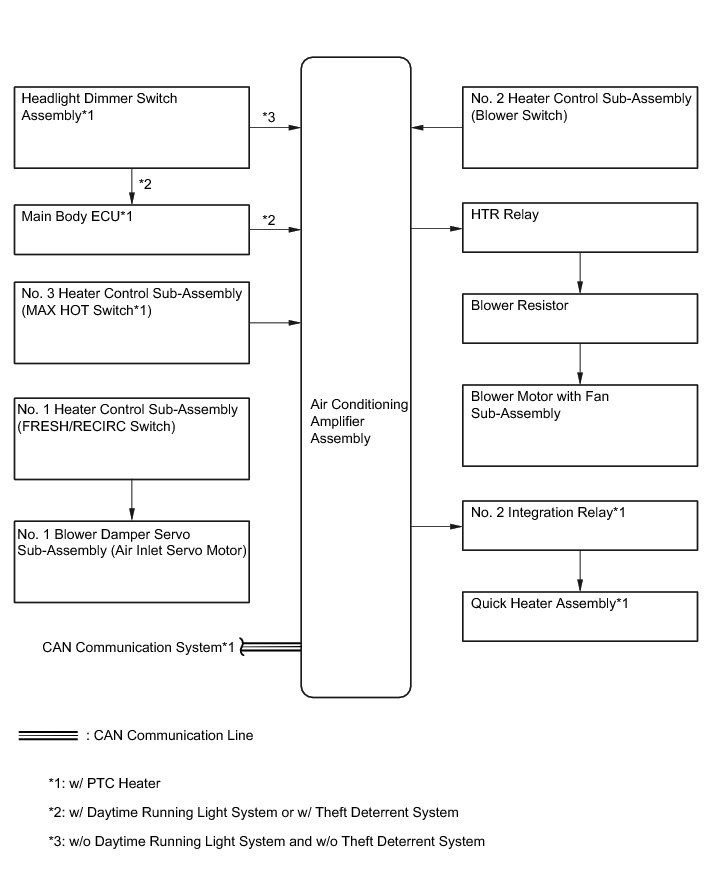

1. AIR CONDITIONING AMPLIFIER ASSEMBLY (w/ Cooler)





2. AIR CONDITIONING AMPLIFIER ASSEMBLY (w/o Cooler)





3. CAN COMMUNICATION LINE (w/ Cooler or w/ PTC Heater)

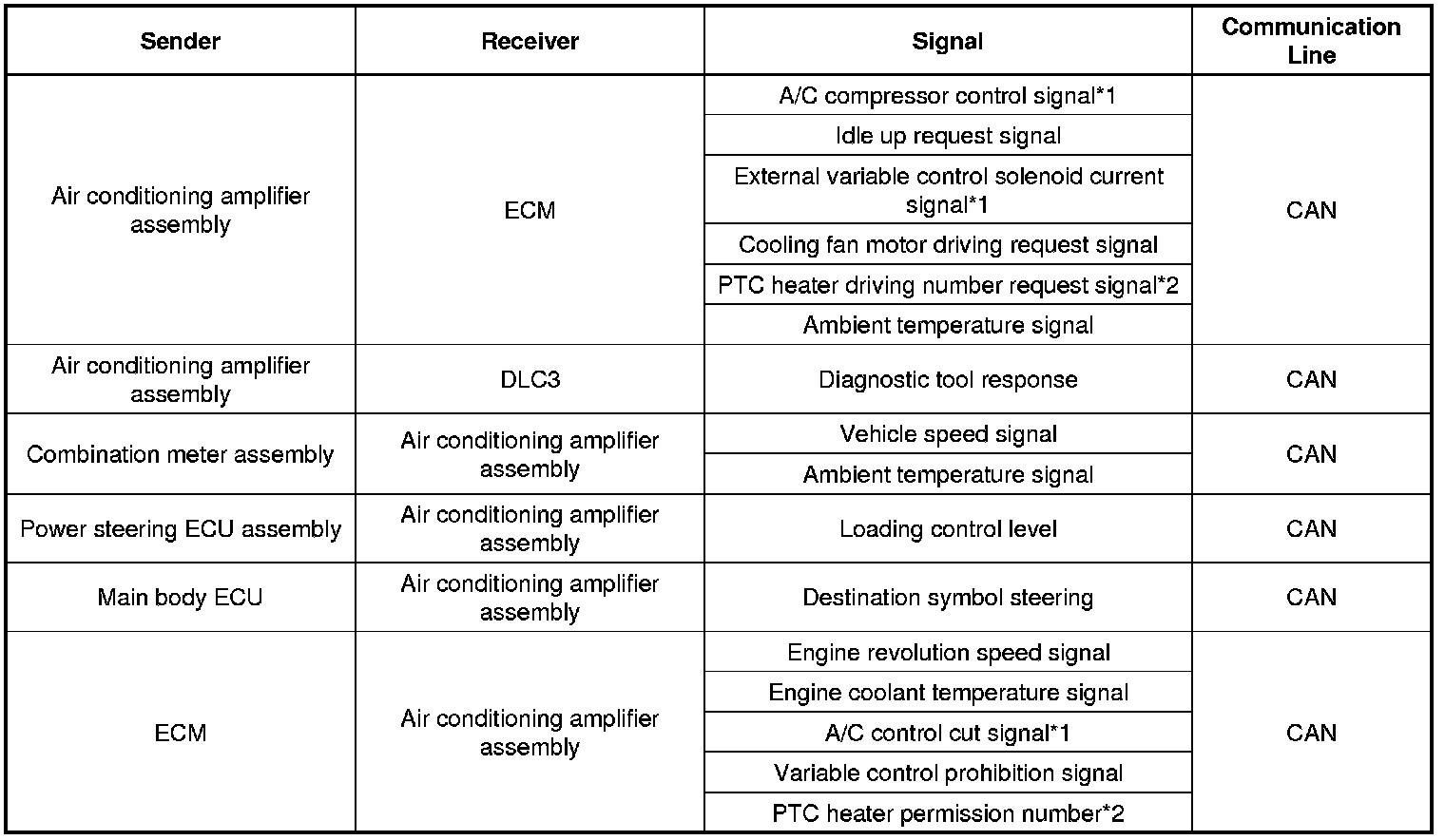

Communication Table





* *1: w/ Cooler

* *2: w/ PTC Heater
