Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

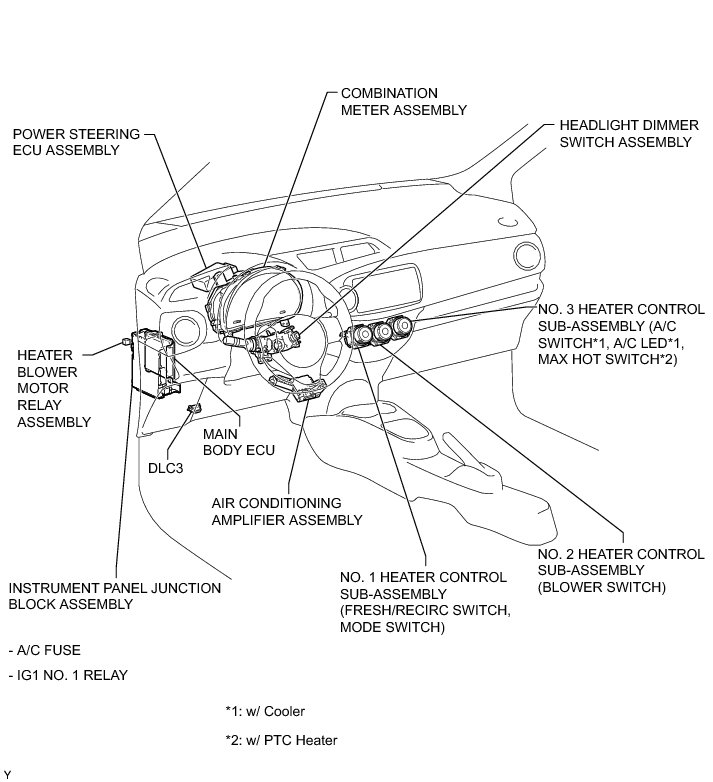

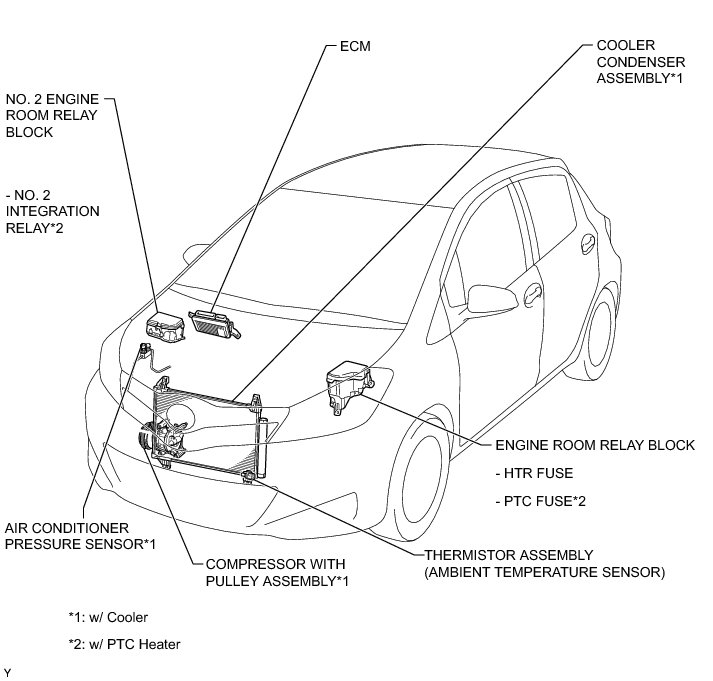

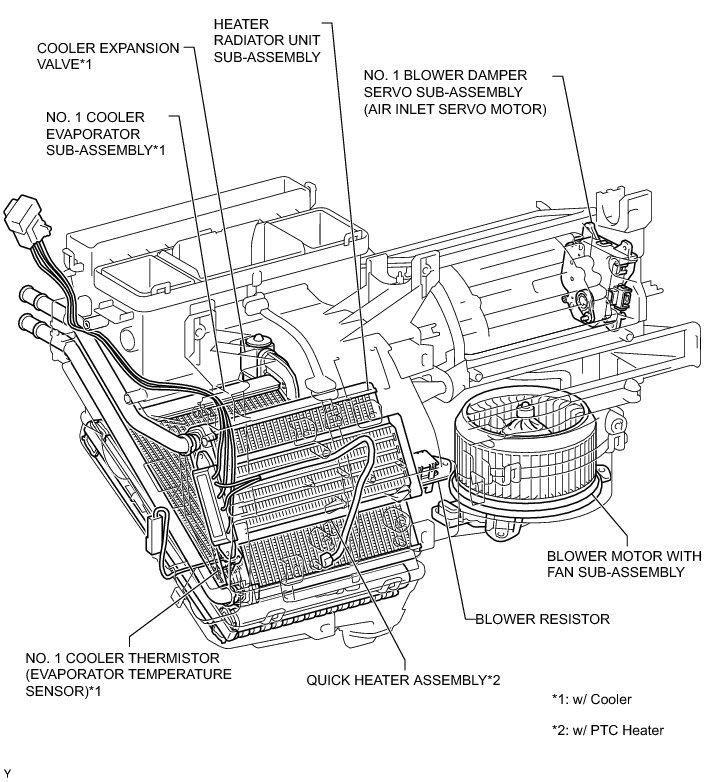

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Hatchback): PARTS LOCATION
