Key Reminder Switch: Testing and Inspection

DOOR LOCK: UNLOCK WARNING SWITCH (for Hatchback): INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

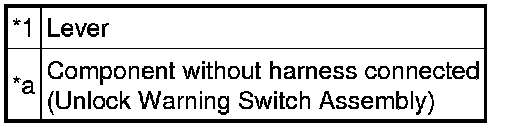

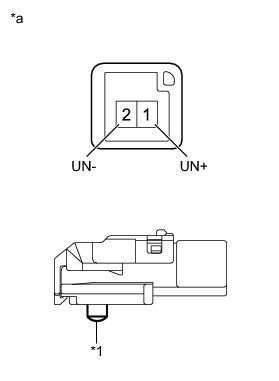

Text in Illustration

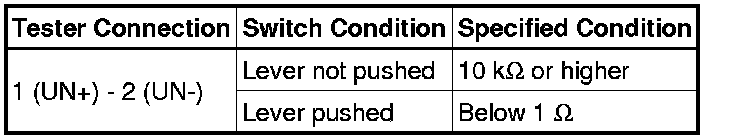

Standard Resistance:





If the result is not as specified, replace the unlock warning switch.
