Meter / Gauge System (for Hatchback)
Meter / Gauge System (for Hatchback)

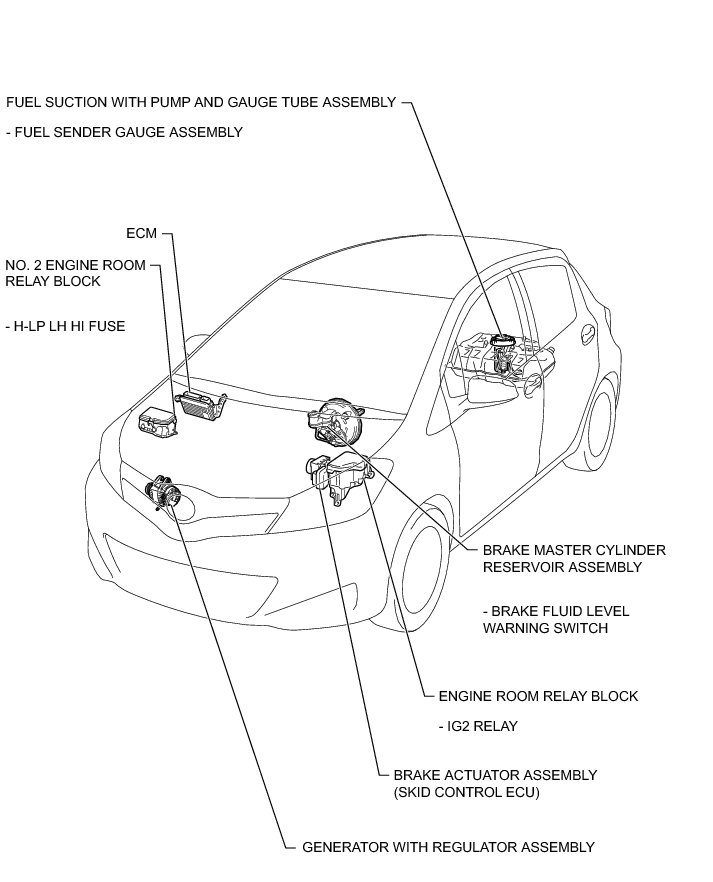

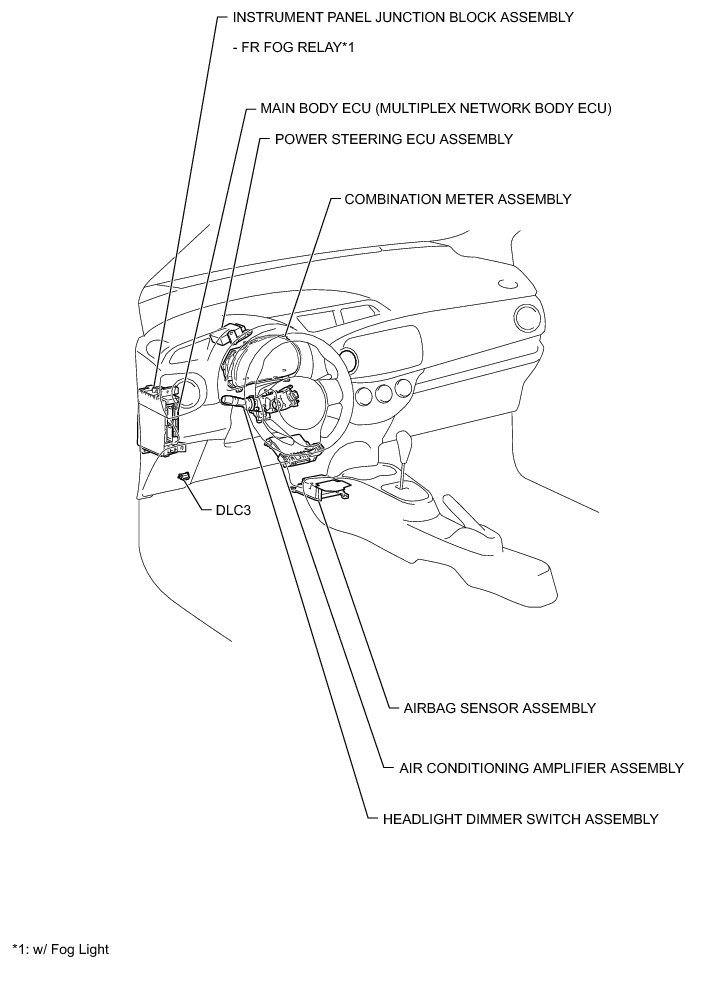

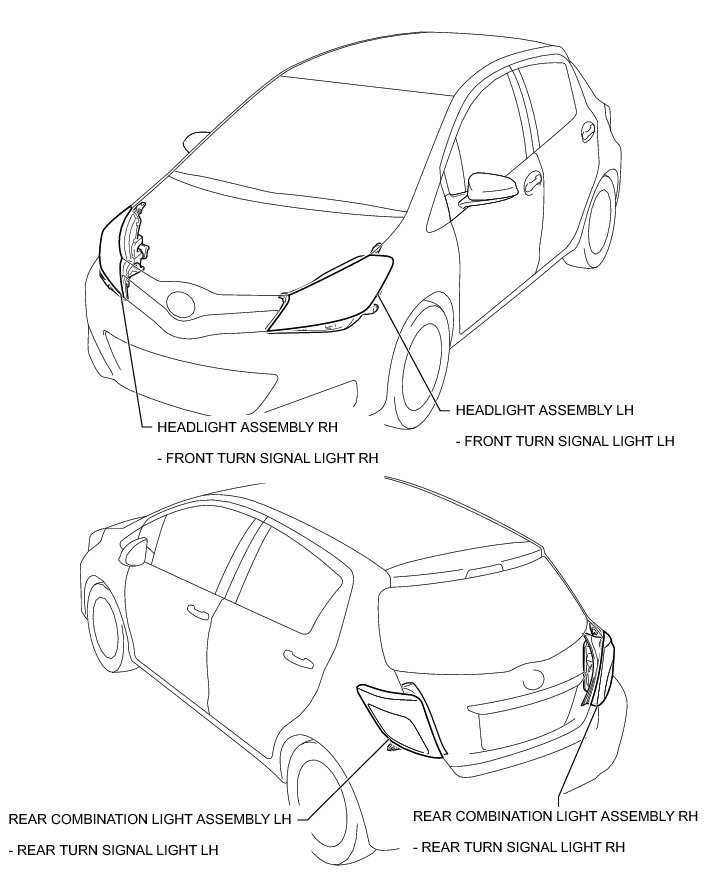

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM (for Hatchback): PARTS LOCATION
