Interior Lighting System (for Hatchback)
Interior Lighting System (for Hatchback)

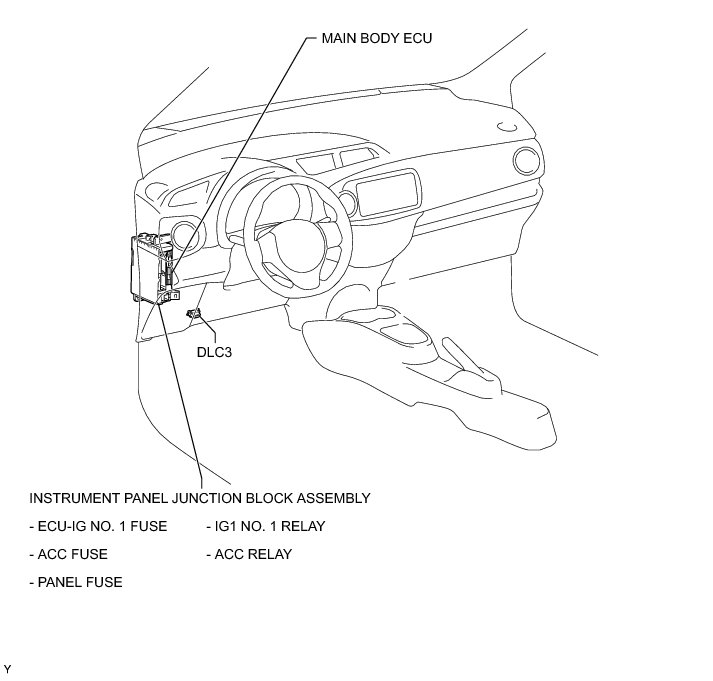

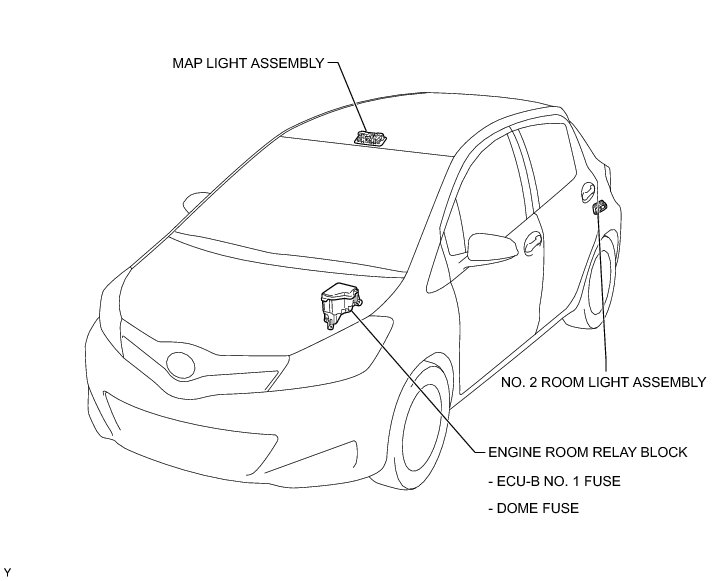

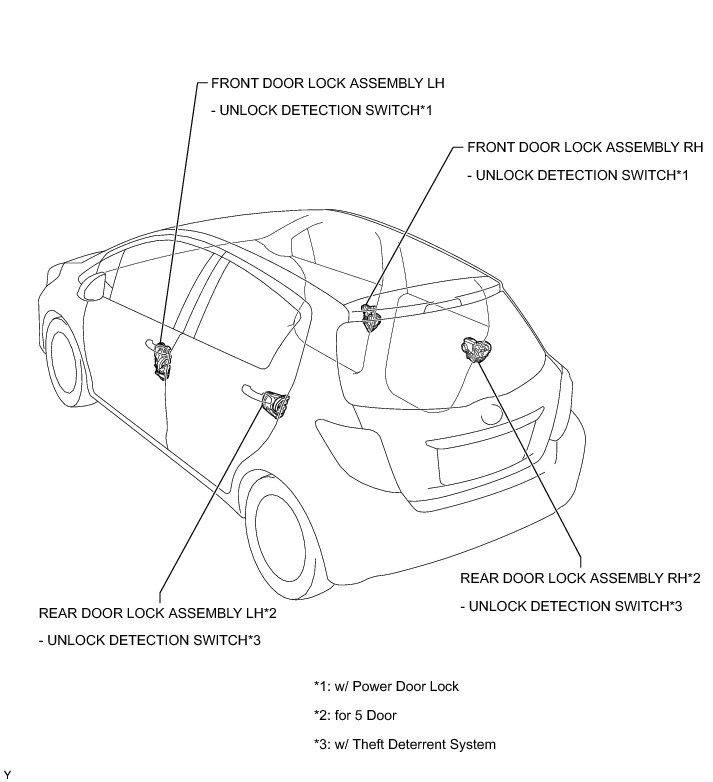

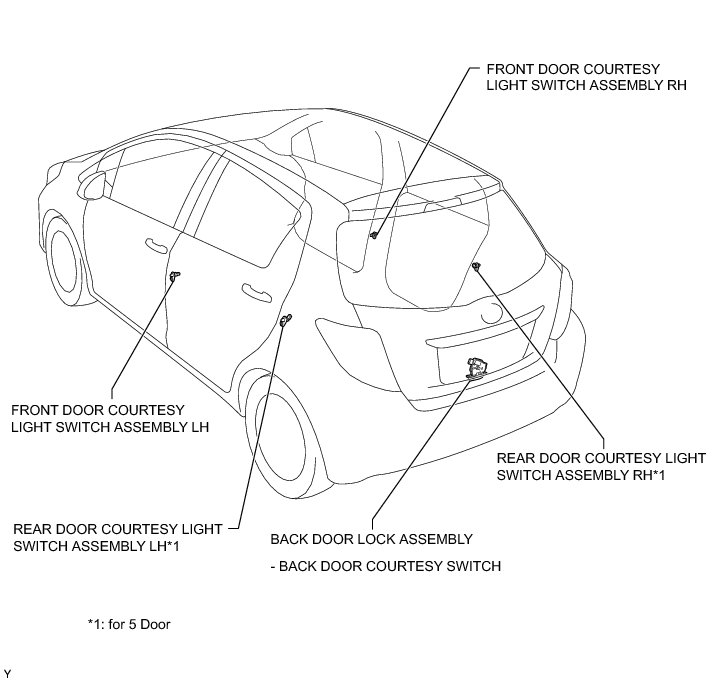

LIGHTING (INT): LIGHTING SYSTEM (for Hatchback): PARTS LOCATION
