Lighting System (for Hatchback)
Lighting System (for Hatchback)

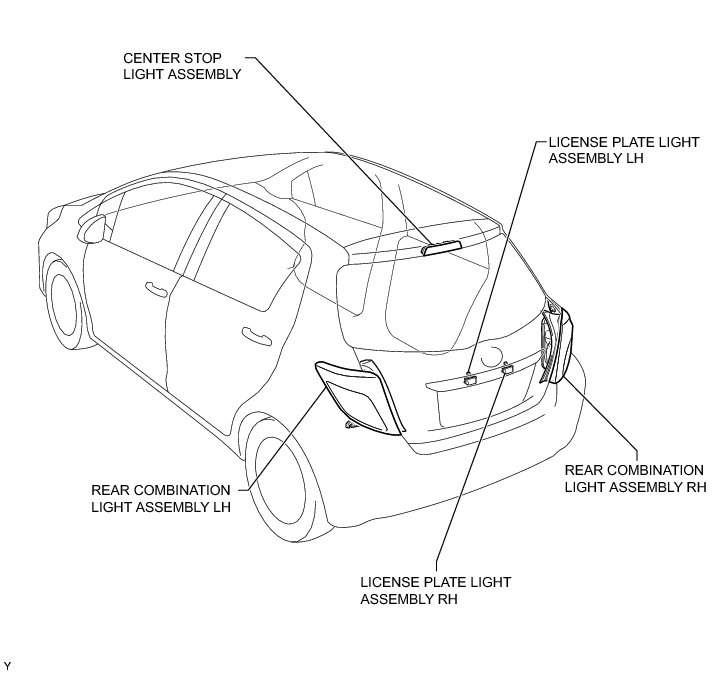

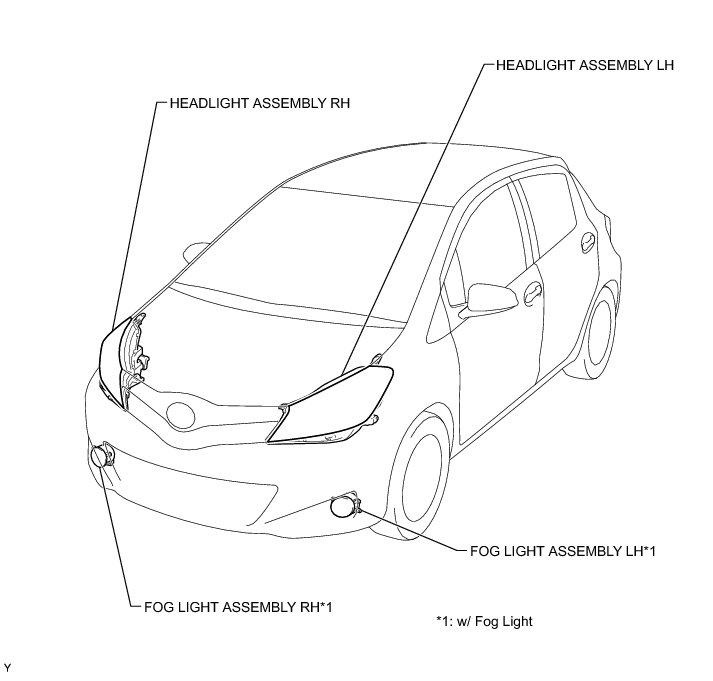

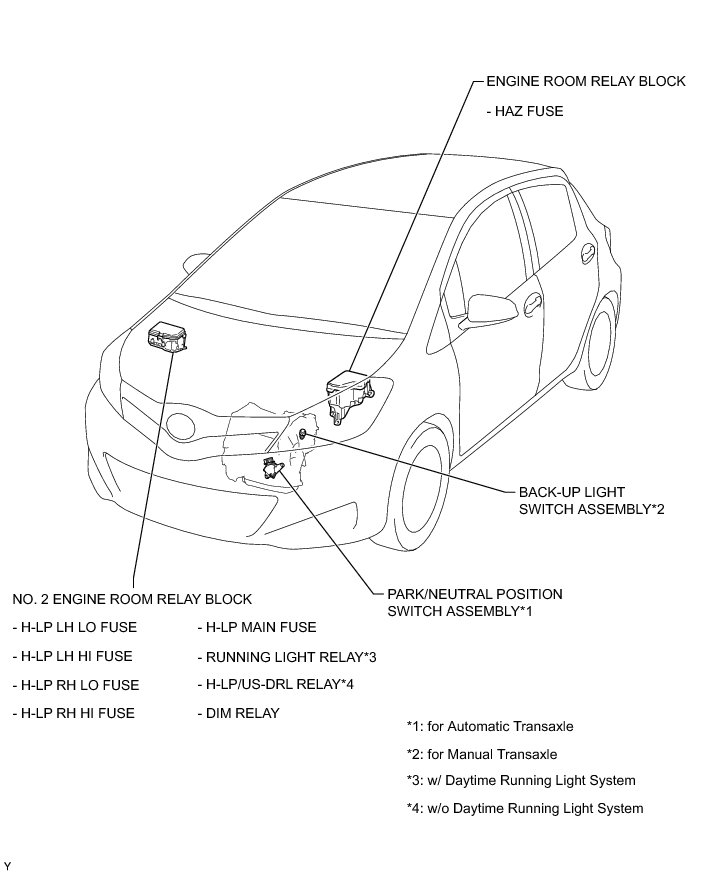

LIGHTING (EXT): LIGHTING SYSTEM (for Hatchback): PARTS LOCATION
