Trunk Lamp: Testing and Inspection

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback): INSPECTION

1. INSPECT NO. 2 ROOM LIGHT ASSEMBLY

(a) Apply battery voltage to the connector and check the No. 2 room light comes on.

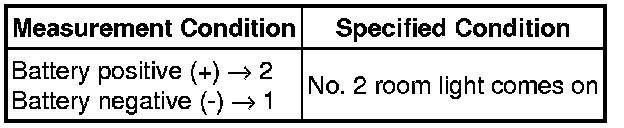

Text in Illustration





OK:





If the result is not as specified, replace the No. 2 room light assembly.
