Computers and Control Systems: Description and Operation

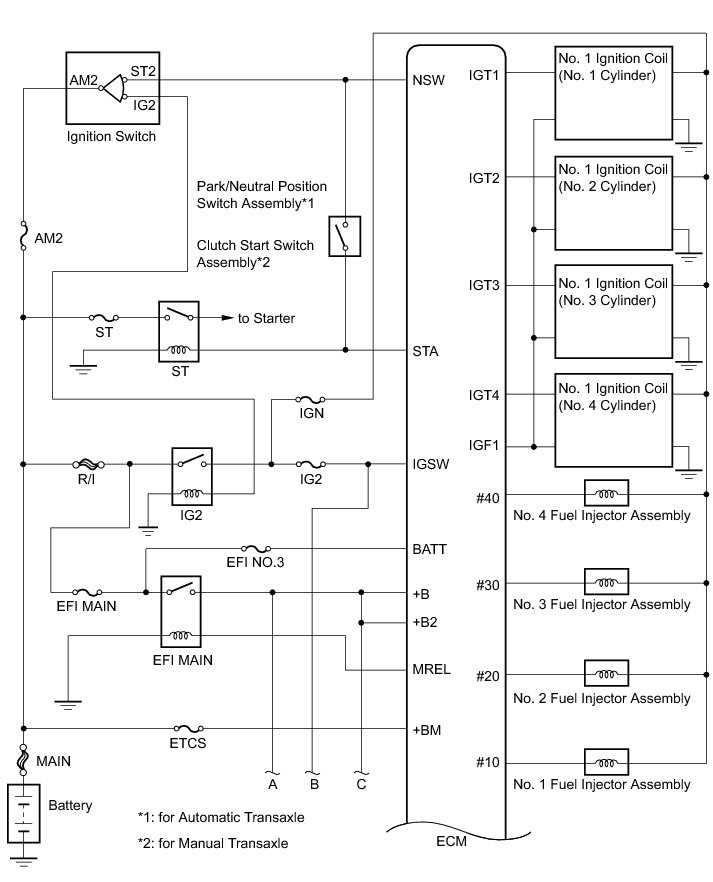

1NZ-FE ENGINE CONTROL: SFI SYSTEM (for Hatchback): SYSTEM DIAGRAM
