Fuel Delivery and Air Induction: Description and Operation

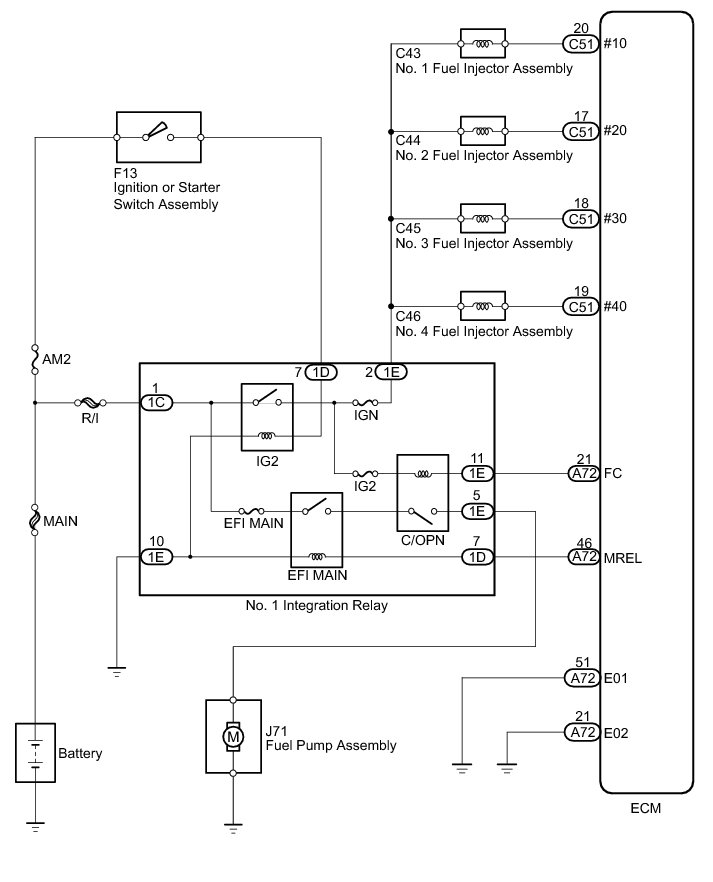

1NZ-FE FUEL: FUEL SYSTEM (for Hatchback): SYSTEM DIAGRAM
