Fuel Delivery and Air Induction: Testing and Inspection

1NZ-FE INTAKE / EXHAUST: INTAKE SYSTEM (for Hatchback): ON-VEHICLE INSPECTION

1. INSPECT INTAKE SYSTEM

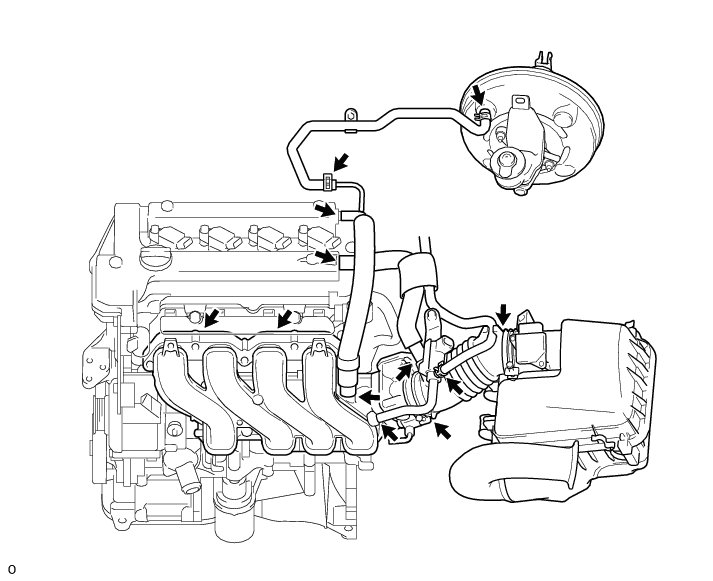

(a) Check that there is no air suction at the points shown in the illustration.





HINT
Perform "Inspection After Repairs" after repairing or replacing the intake system Programming and Relearning.
