Ignition System: Description and Operation

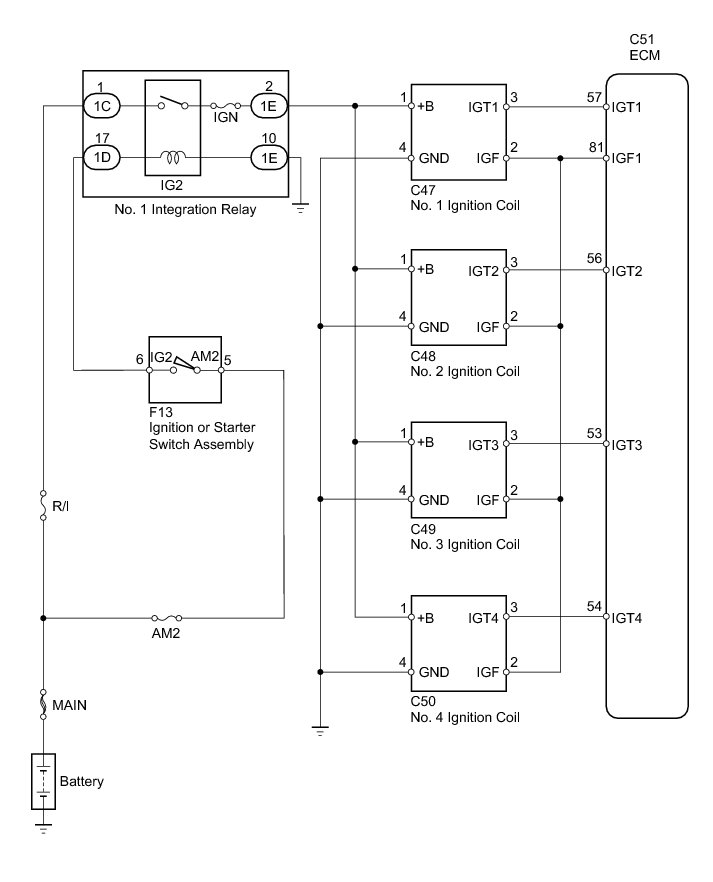

1NZ-FE ENGINE CONTROL: IGNITION SYSTEM (for Hatchback): SYSTEM DIAGRAM
