Automatic Transmission/Transaxle





SPECIFICATIONS: U340E AUTOMATIC TRANSMISSION / TRANSAXLE (for Hatchback): SERVICE DATA

Speed Sensor

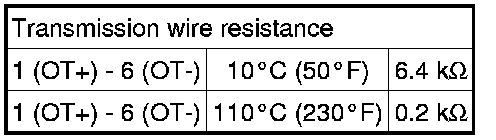

Transmission Wire

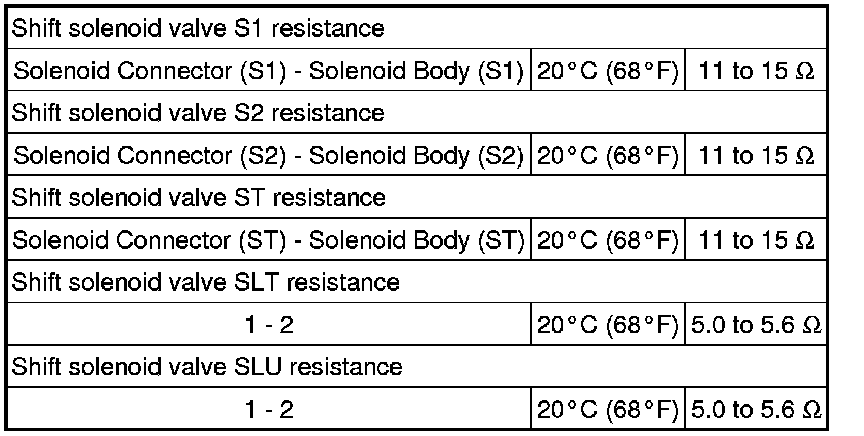

Valve Body Assembly






Park/Neutral Position Switch

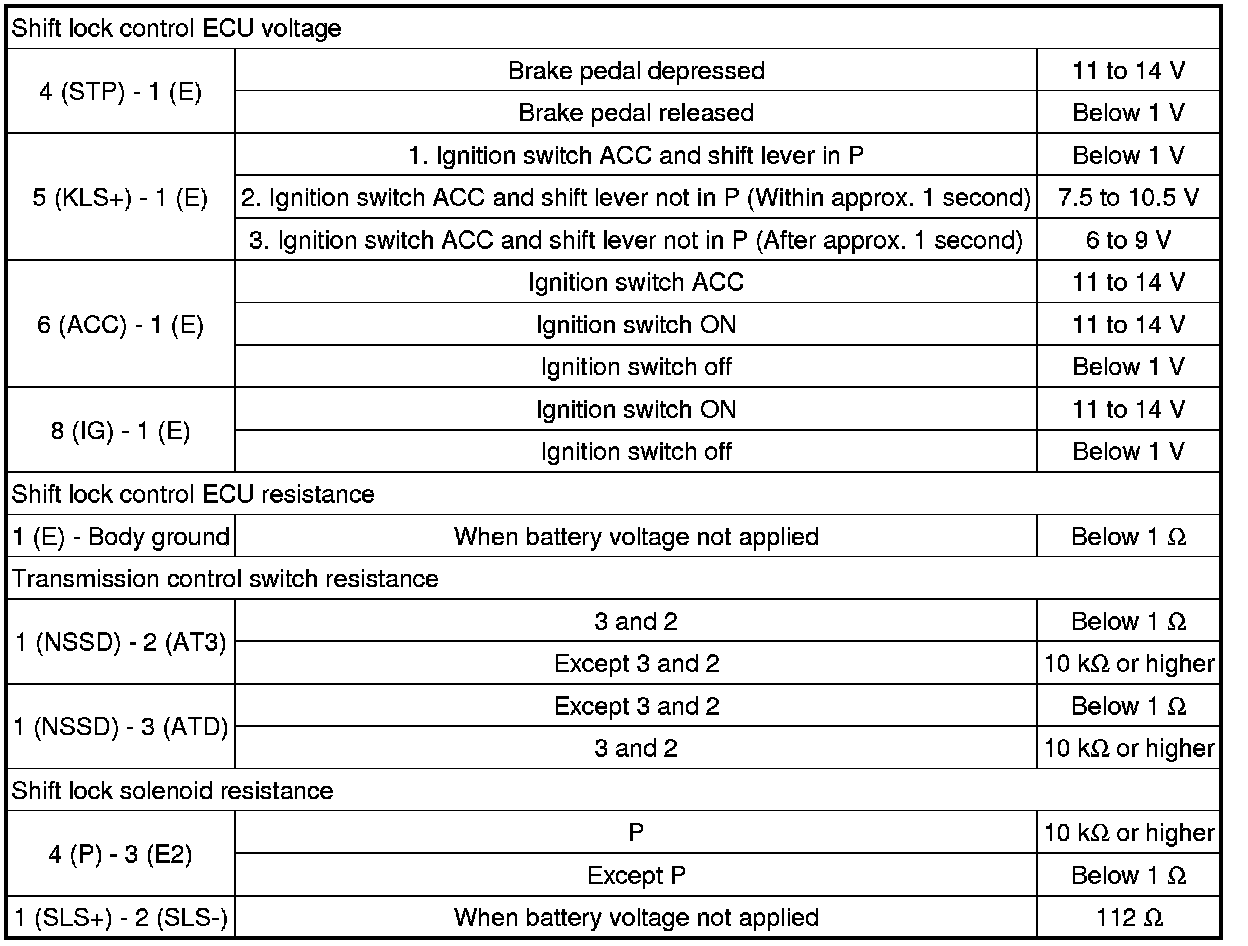

Shift Lever
