Specifications
>>
Electrical Specifications
>>
Charging System
Charging System

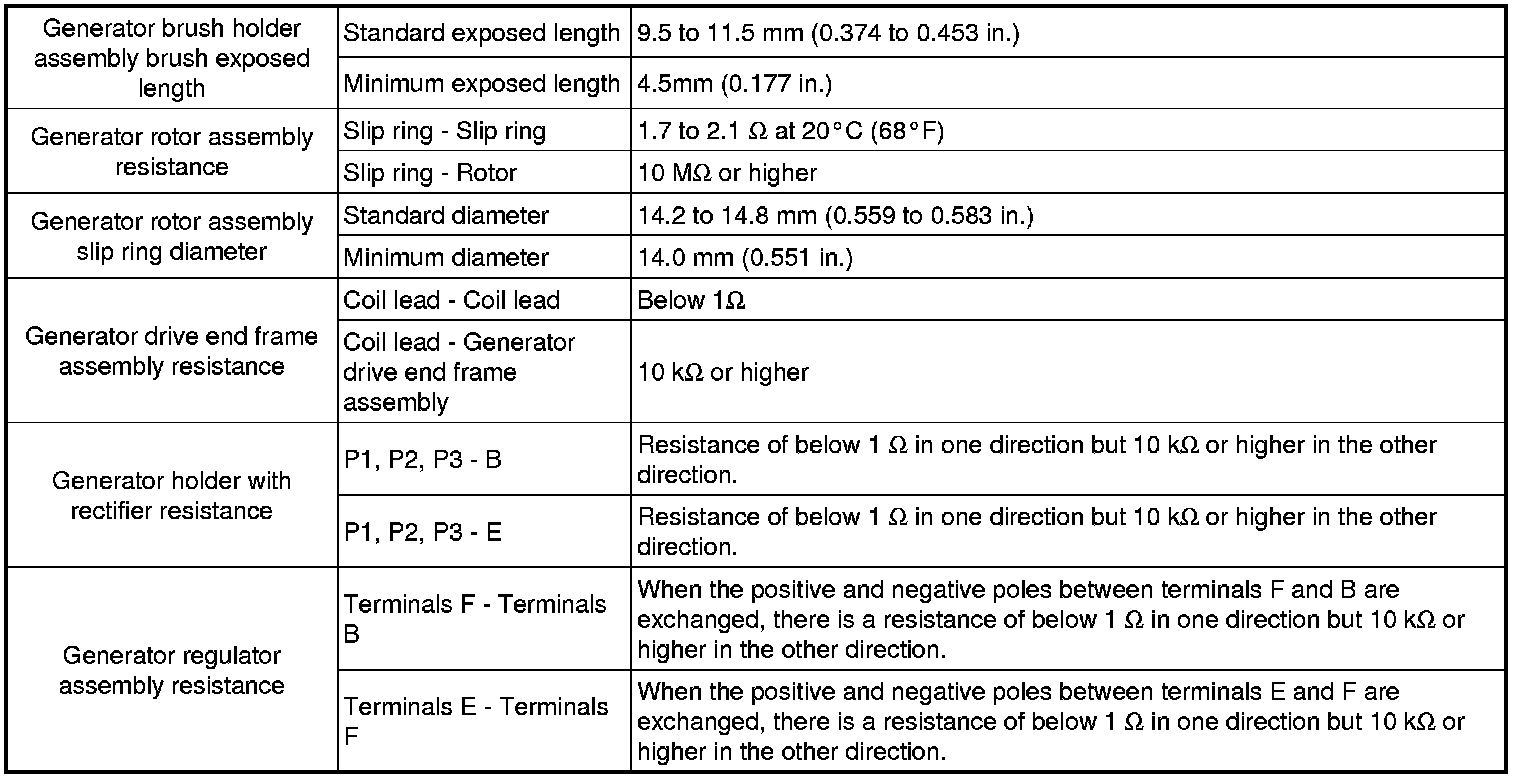

SPECIFICATIONS: 1NZ-FE BATTERY / CHARGING (for Hatchback): SERVICE DATA
