Steering Column
Steering Column
SPECIFICATIONS:
STEERING COLUMN
(for Hatchback): SERVICE DATA
Steering

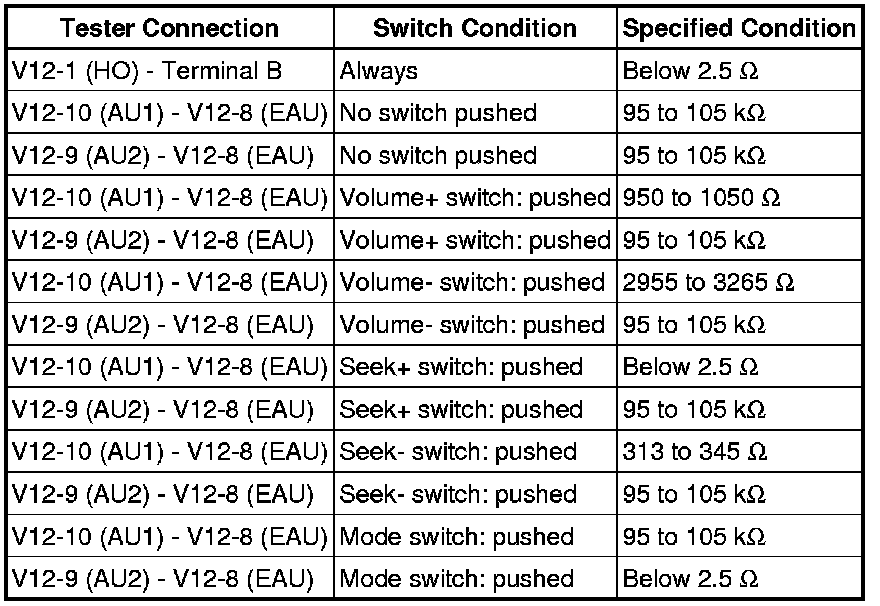

Pad Switch Standard Resistance
