Flex Plate

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

Install the rear drive plate spacer, drive plate and ring gear sub-assembly, and front drive plate spacer with the 6 bolts.

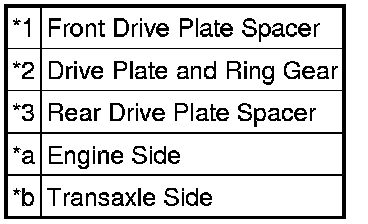

Text in Illustration






Install and uniformly tighten the 6 bolts in several steps, in the sequence shown in the illustration.






Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
