Automatic Transmission/Transaxle

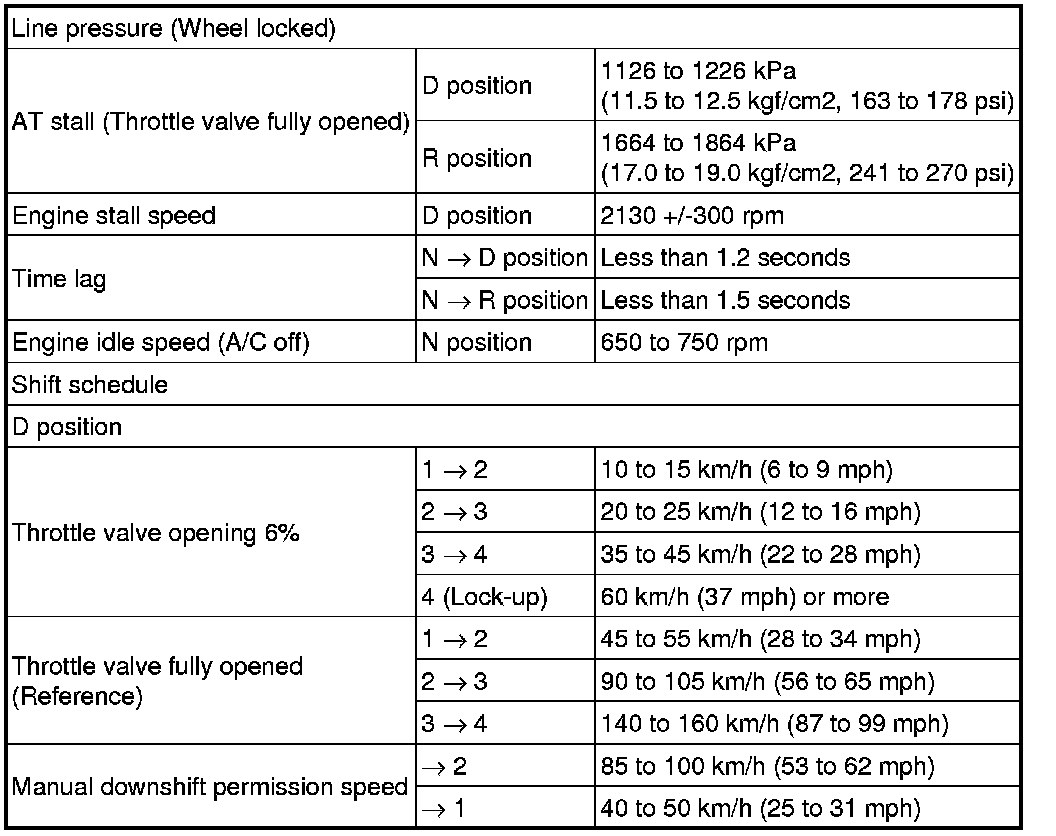

SPECIFICATIONS: U340E AUTOMATIC TRANSMISSION / TRANSAXLE (for Hatchback): SERVICE DATA

Automatic Transaxle System
