Starting System: Description and Operation

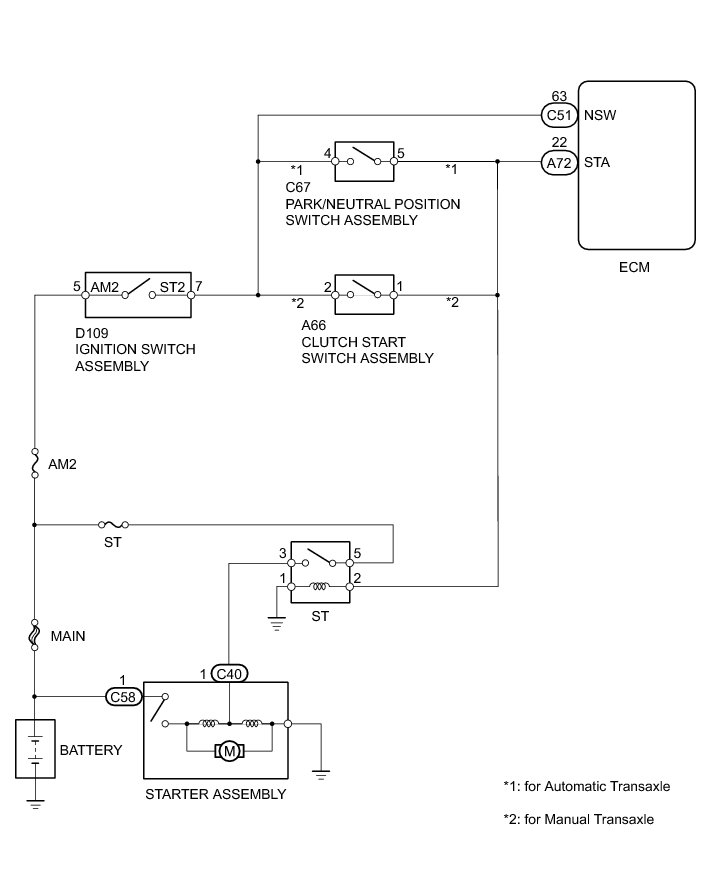

1NZ-FE STARTING: STARTING SYSTEM (for Hatchback): SYSTEM DIAGRAM
