Initialization (from 07/2011)

INTRODUCTION: REPAIR INSTRUCTION (for Hatchback): INITIALIZATION

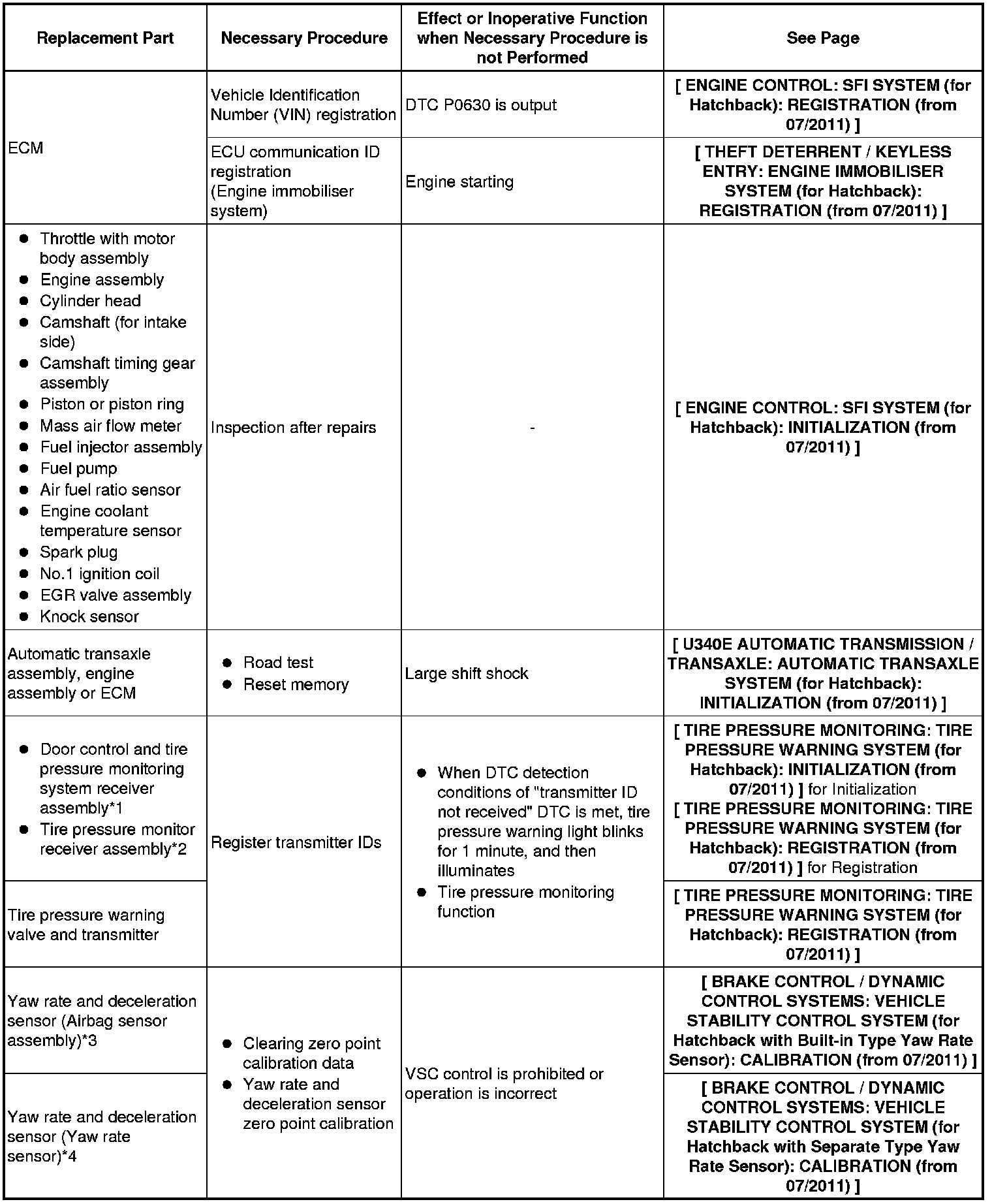

1. PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED

Procedures Necessary when ECU or Other Parts are Replaced









* *1: w/ Wireless Door Lock Control System

* *2: w/o Wireless Door Lock Control System

* *3: for Hatchback with Built-in Type Yaw Rate Sensor

* *4: for Hatchback with Separate Type Yaw Rate Sensor

* *5: w/ Tire Pressure Warning System

* *6: w/o Tire Pressure Warning System
