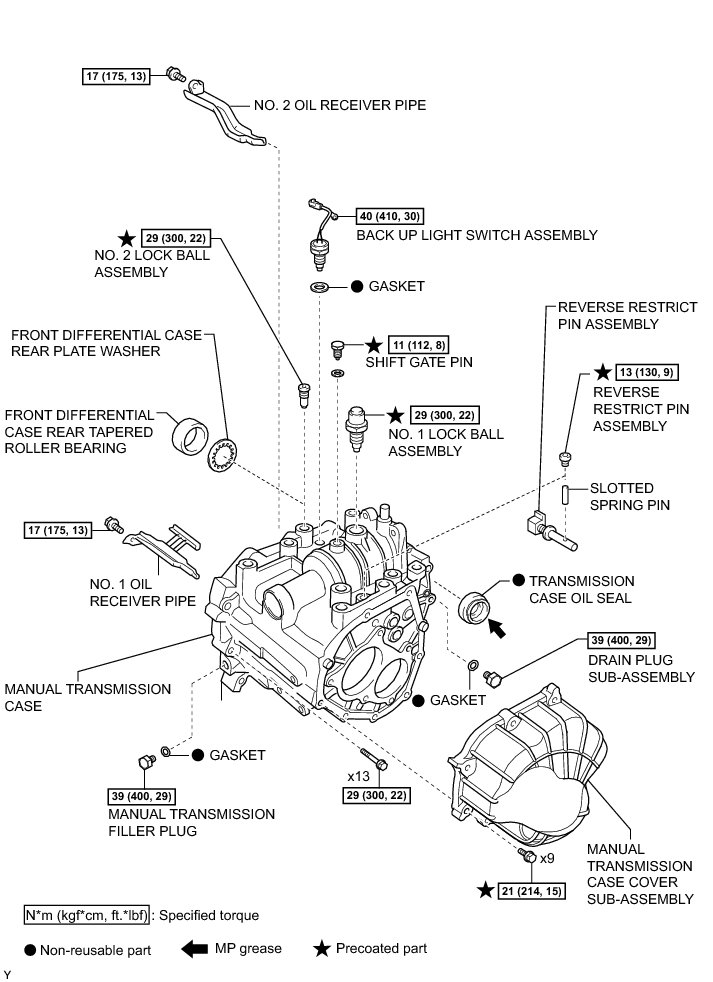

Manual Transmission/Transaxle: Locations
Locations
MANUAL TRANSMISSION FILLER PLUG

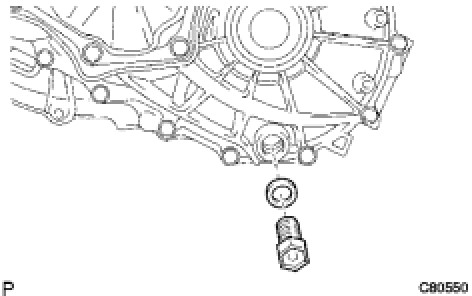

DRAIN PLUG SUB-ASSEMBLY
