Transmission Control Systems: Locations

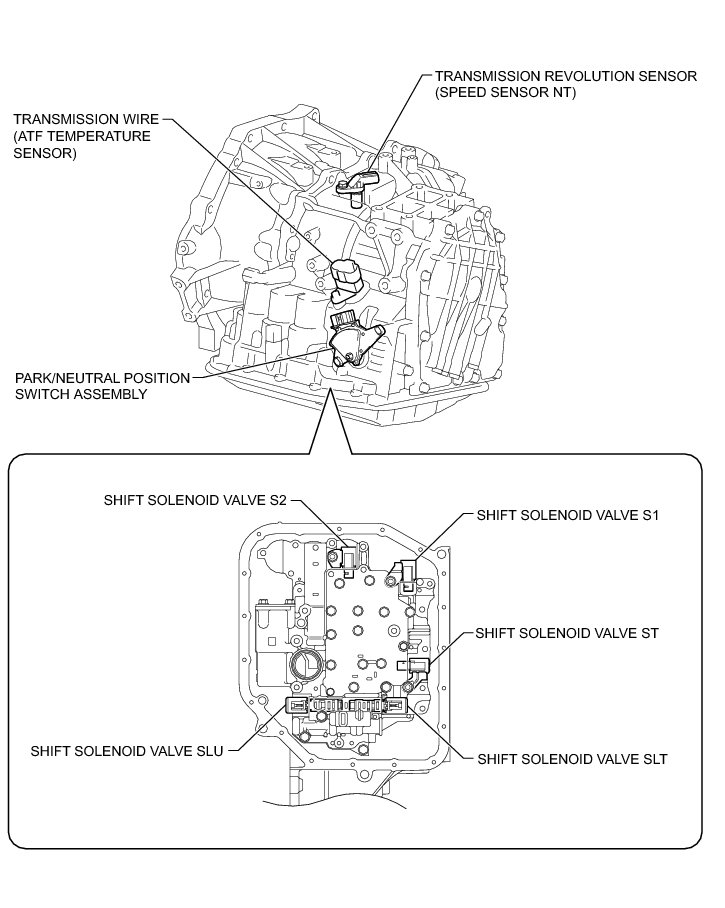

U340E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM (for Hatchback): PARTS LOCATION
