Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations

Windows: Locations

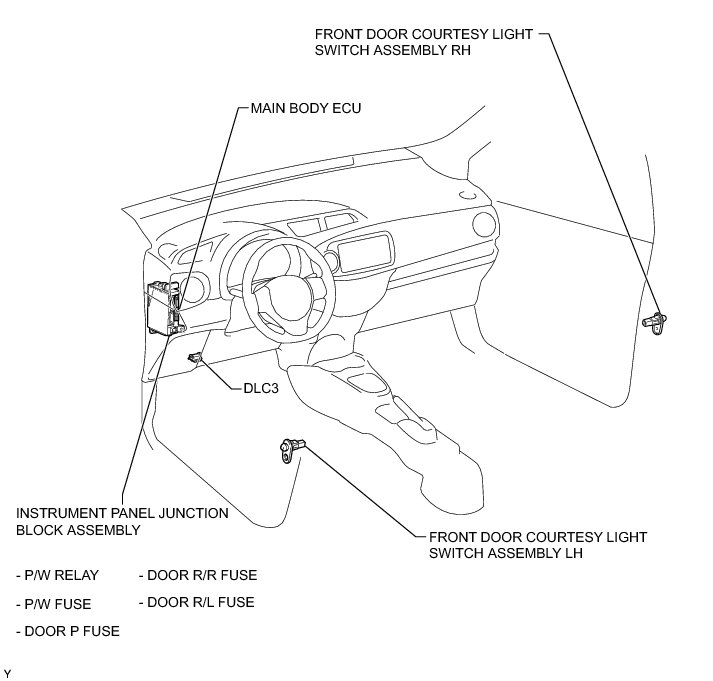

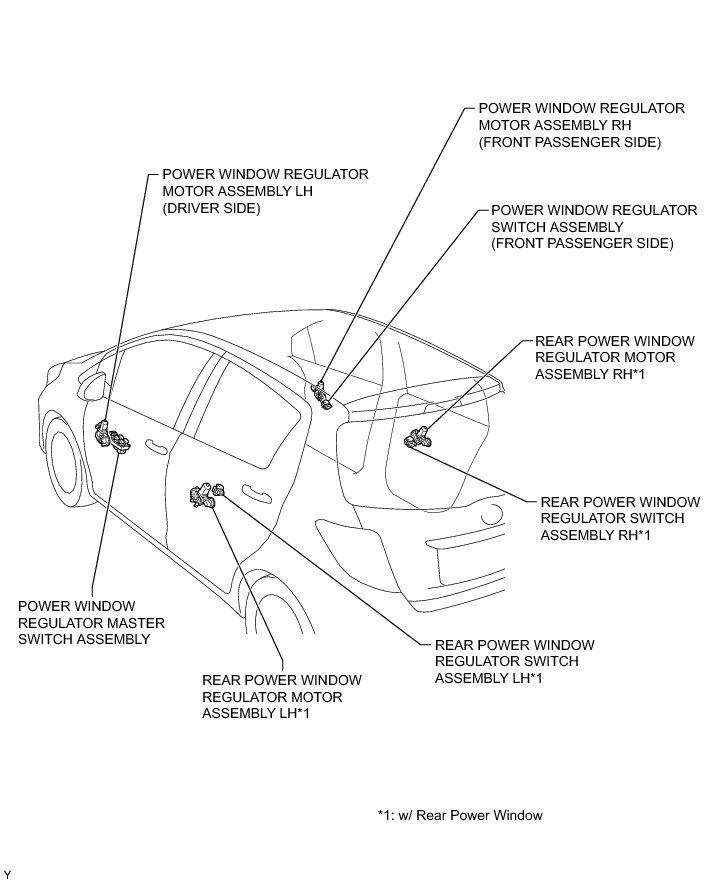

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM (for Hatchback): PARTS LOCATION
