Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Description and Operation

Wiper and Washer Systems: Description and Operation

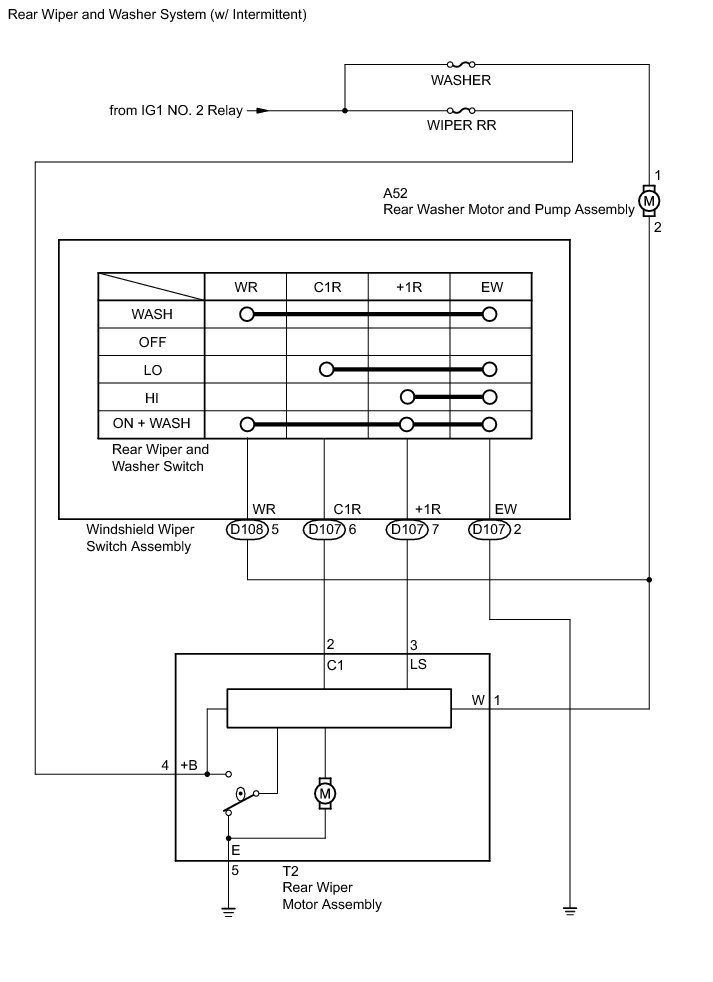

WIPER / WASHER: WIPER AND WASHER SYSTEM (for Hatchback): SYSTEM DIAGRAM
