38 - 41 - Position of Parts In Engine Compartment
38 - 41 - Position of Parts In Engine Compartment

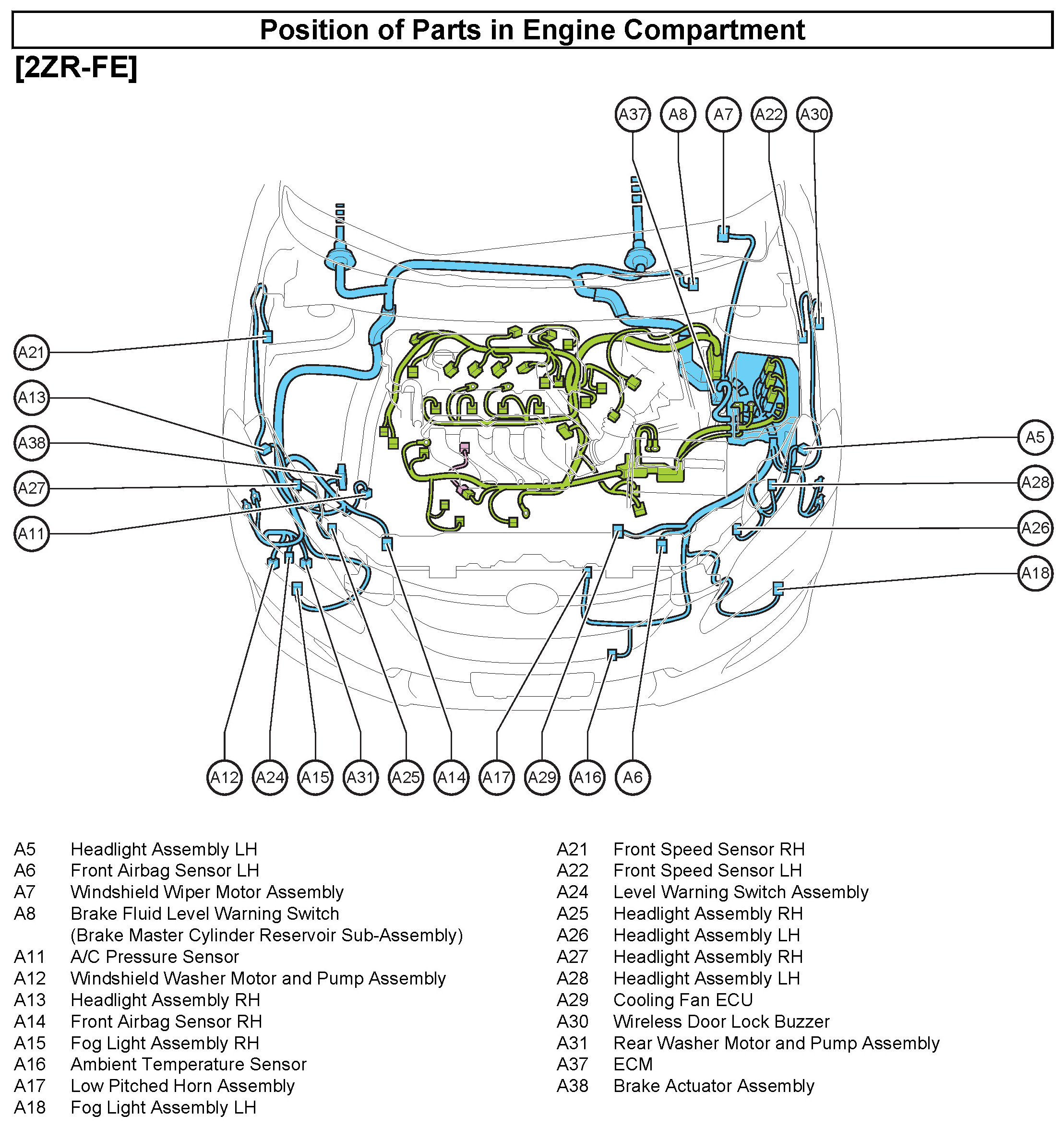

Position Of Parts in Engine Compartment:
Position Of Parts in Engine Compartment:
