Vacuum Vent Valve: Service and Repair

Removing:





- Remove driver's side instrument panel trim.

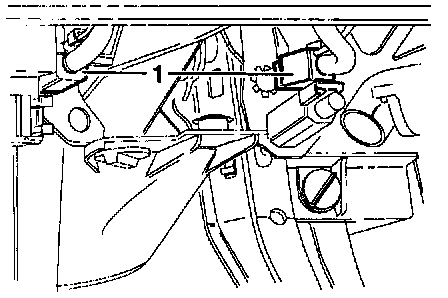

- Remove wiring connector and vacuum hose from vent valve -1-
- Unscrew vent valve -1- from bracket.

Installing:
- Screw vent valve into bracket to stop.
- Using pedal, pull vent valve back to pedal rest position.
Vacuum vent valve is now adjusted
- Reconnect wiring harness connector and vacuum hose.
