Door Panel - Removal
Group: 70Number: 93-02
Date: June 15, 1993
Subject:
Door Panel Removal
Model(s):
Golf III, GTI and Jetta III
The following procedures should help you remove and install door panels on the above vehicles. These procedures are designed to help you provide a quality repair.
Door panel, removing

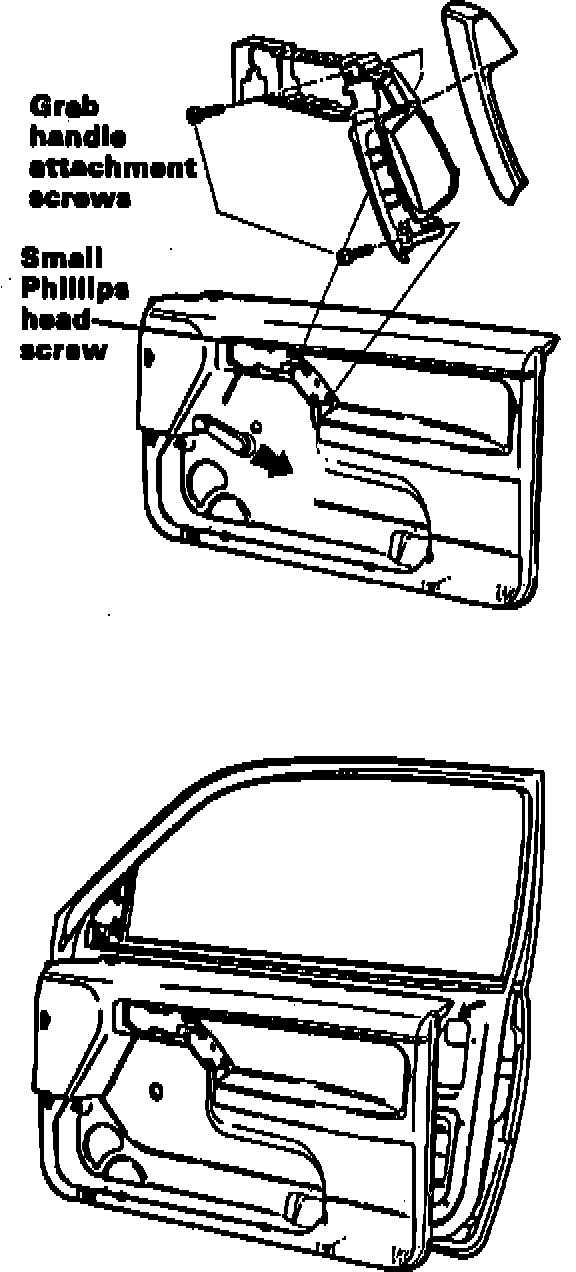

- remove lock knob
- remove two grab handle attachment screws
- Slide spacer ring (1) between window crank and door panel in direction of arrow and then pull off window crank.
- Using both hands, place fingers behind outside remote rearview mirror control knob and pull towards you to remove knob.
- Pull inside door latch release lover trim place straight out, bottom first then top.
- Remove the top Phillips head screw (in front of inside door release lever housing) for the outside remote rearview mirror control housing and door panel.
- Remove six Phillips head door panel attachment screws around the outer edge of the door panel.
- Separate door panel from trim piece at top of door panel starting from either end, not both. DO NOT pull hard, this will cause the door panel to break!
Note
If door panel will not separate using moderate force, try moving the bottom of the door panel in and out while pulling out of door panel.
- Remove electrical connector for speaker.
- Remove electrical connector for Alarm System LED (driver's door only)
Vapor barrier, removing
- Remove inside door release lower housing by pulling release tab on bottom rear of housing towards you and sliding housing forwards.
- Remove vapor barrier starting from either top edge.
CAUTION
Avoid tearing the vapor barrier. If torn, the vapor barrier will need to be replaced.
Using razor blade, carefully cut vapor barrier around trim panel securing clip retainers.
Note
Scratches in paint caused by cutting the vapor barrier must be repaired with touch up paint to prevent corrosion.
Pull vapor barrier down only as far as needed.
CAUTION
DO NOT remove the vapor barrier completely. This will increase the chances of a water leak.
Note
During reinstallation of the vapor barrier, there must not be any wrinkles in the barrier where it contacts the adhesive. This will cause water to leak onto the door panel and into the vehicle.
