Windshield Washer Spray Nozzle: Adjustments

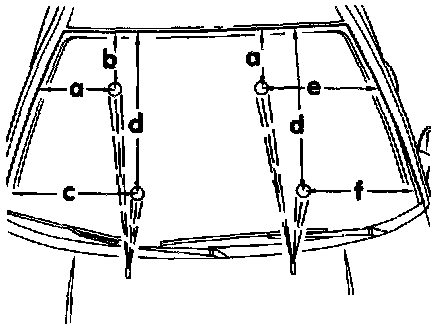

Adjust washer nozzles using special tool 3125.
a- 280 mm (11.0 in.)
b- 300 mm (11.8 in.)
c- 430 mm (16.9 in.)
d- 560 mm (22.0 in.)
e- 400 mm (15.7 in.)
f- 330 mm (13.0 in.)
Tolerance = ± 20 mm (0.8 in.)
Adjust washer nozzles using special tool 3125.
a- 280 mm (11.0 in.)
b- 300 mm (11.8 in.)
c- 430 mm (16.9 in.)
d- 560 mm (22.0 in.)
e- 400 mm (15.7 in.)
f- 330 mm (13.0 in.)
Tolerance = ± 20 mm (0.8 in.)
