High Pressure Safety Valve HVAC: Description and Operation

Pressure Relief Valve

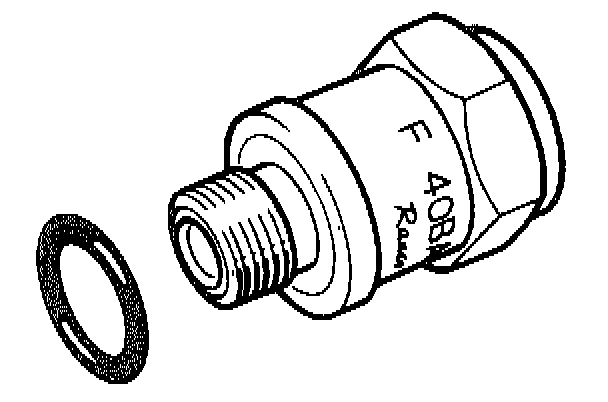

The pressure relief valve is mounted on the compressor or the receiver drier. At pressures above 40 bar (580 psi), the pressure relief valve opens to vent excessive pressure. When system pressure is reduced, the valve closes to prevent total refrigerant loss.

A cap on the pressure relief valve will pop out if the valve has opened.
