Oil Pressure Warning Lamp/Indicator: Testing and Inspection

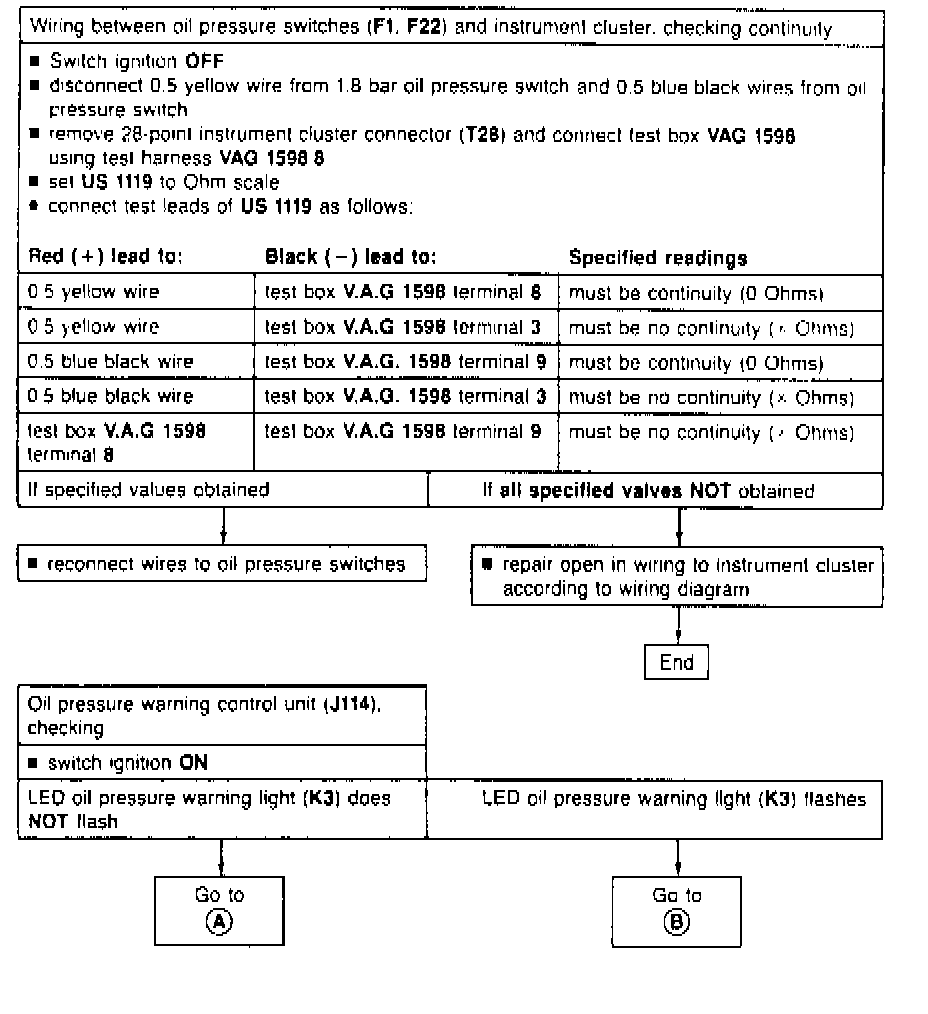

OIL PRESSURE WARNING TROUBLESHOOTING

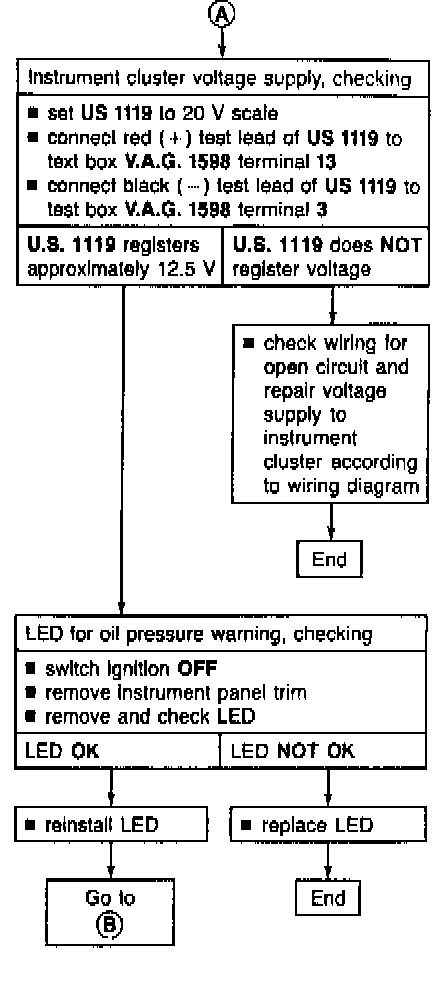

A:

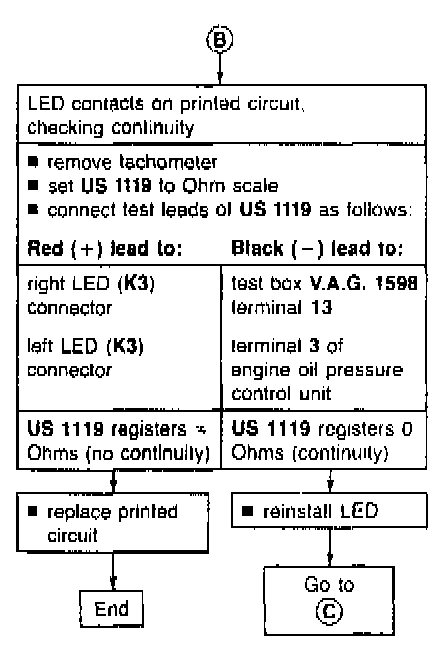

B:

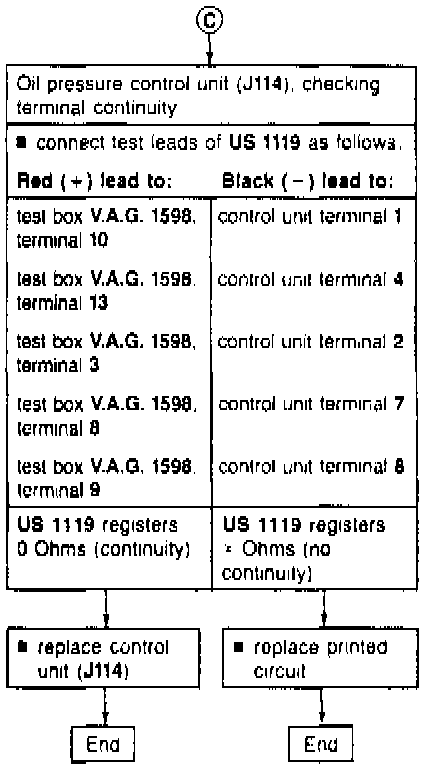

C:
