Doors, New - Installing Upper Seat Belt Buckle Support

Group: 69

Number: 97-05

Date: Aug. 19, 1997

Subject:
New Replacement Doors, Installation of Upper Seat Belt Buckle Support

Model(s):
Golf Jetta without Airbag 1993 -->

Service

When installing a NEW front door, use the following procedure to locate holes for upper belt buckle support (when necessary):

- Locate dimples in upper door frame.

- Carefully drill two 8 mm holes at these locations.

- Use a round file and rework holes to match upper belt buckle support (if necessary).

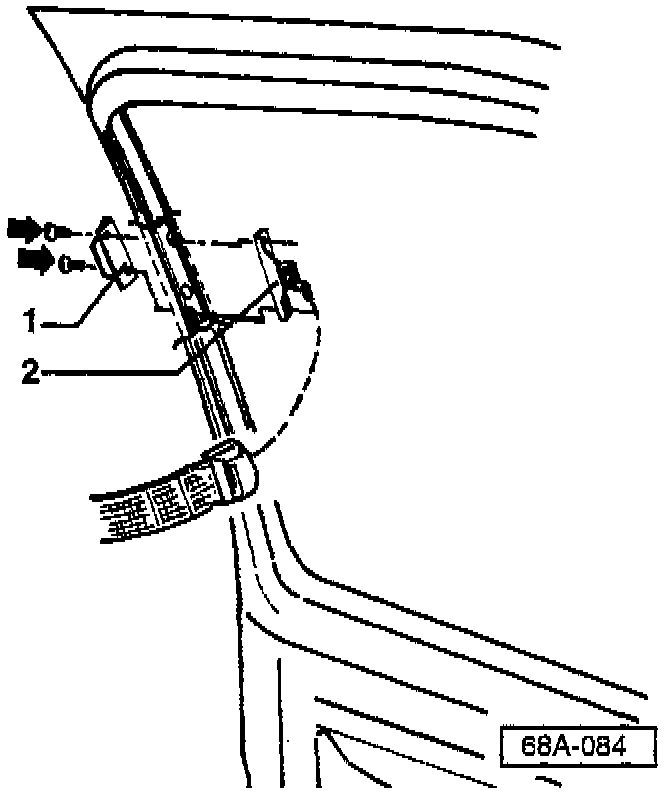

- Install upper door catch (anchor plate) -1- and upper belt buckle support (retaining clamp) -2- into door using screws -arrows-.

^ Tightening torque: 15 Nm (11 ft lb)
