Key Code - Number, Location

Group: 57

Number: 97-02

Date: Jan. 21, 1997

Subject:
Key Code Number, Location

Model(s):
Golf, GTI, Jetta 1996 -->

Service

If a new key must be cut using the door lock key code, code can be obtained using the following procedure.

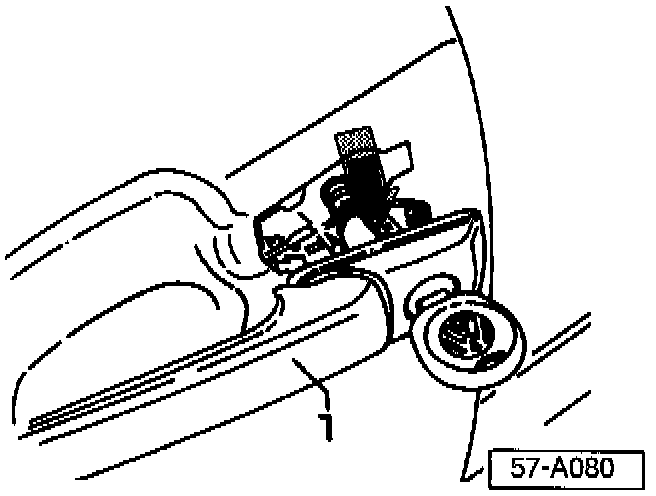

- Remove drivers door handle -1-, -> Door handle, removing and installing page 57-19 of Repair Manual Body-Interior Body Exterior W42 011 294 114A Edition 03.96.

^ Cut key using code found at -arrow-.

- Reinstall door handle.
