Removing and Installing New Fixed Antenna
Group: 91Number: 96-02
Date: Mar. 25, 1996
Subject:
New Fixed Antenna, Removing and Installing
Model(s):
Golf, Jetta 1996 --->
The following information is new and will be integrated with the next Repair Manual update.
Production
A new fixed antenna has been installed on Golf and Jetta vehicles as of:
VIN 3VW_ _ _ _ _ _TM048514
Caution:

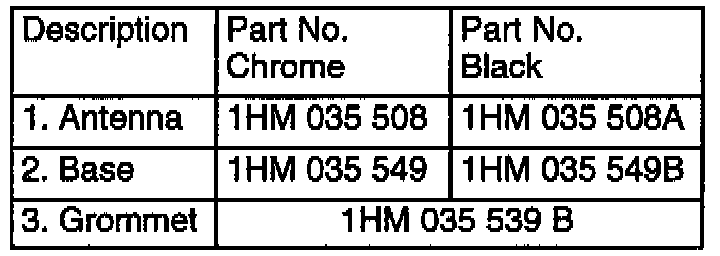

Part numbers are for reference only. Always check with your Parts Dept. for the latest parts information.
Removing

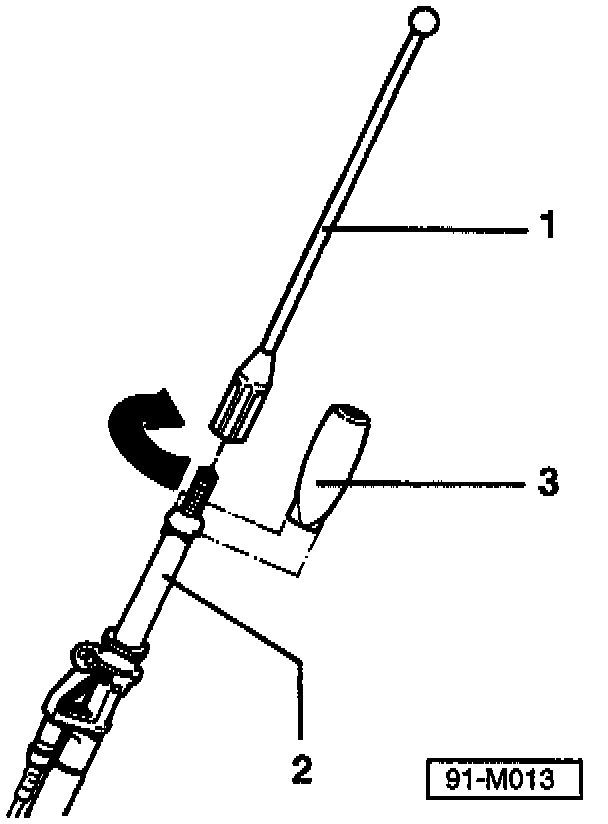

- Turn antenna -1- counterclockwise (arrow) to disconnect from threaded base -2-.
- Pull antenna out of grommet -3-.
Installing
- Install in reverse order of removal.
