Starter Lock-out Switch - New

Group: 96

Number: 96-02

Date: Aug. 23, 1996

File this Technical Bulletin in Repair Manual No.: W42 011 294 117A

Subject:
Starter Lock-out Switch

Model(s):
Golf, GTI, Jetta, Cabrio 1996-->
w/Manual Transmission

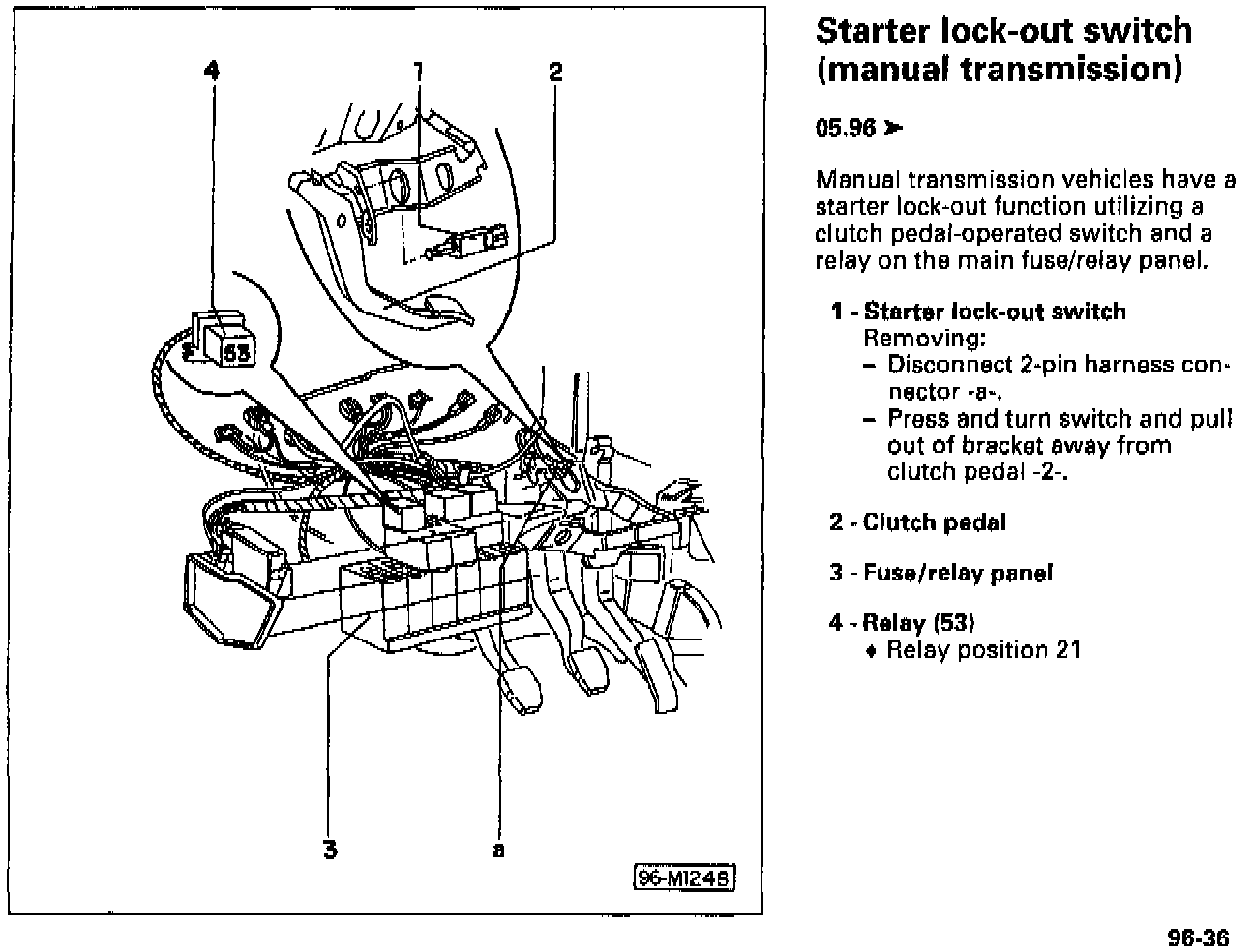

As a running change, starting with 05.96 production, manual transmission vehicles have a lock-out feature that prevents starter operation unless the clutch pedal is depressed.





This Repair Manual page is new and will be integrated with the next Repair Manual update.
