High Mount Brake Light, Removing and Installing

High mount brake light

High mount brake light (Cabrio to 10.98), removing and installing

The high mounted brake light is located in the upper portion of the rear lid.





Bulb holder, removing

- Remove rear lid from Repaur Manual, Body Exterior, Interior, On Board Diagnostic (OBD) Cabrio, Repair Group 70.

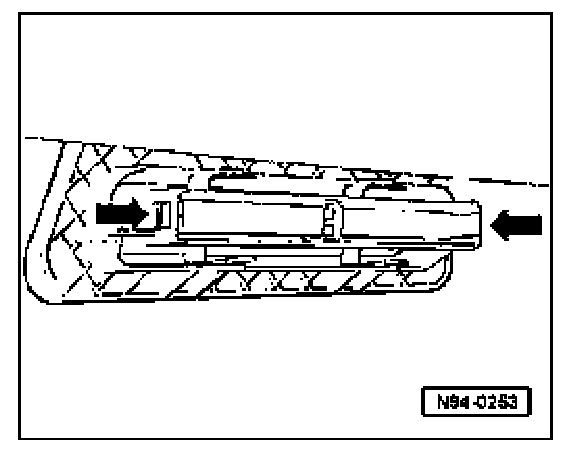

- Depress tabs -arrows- and pull bulb holder from housing.

- Disconnect electrical connection. Installation is in reverse order of removal.
