Up to 10/98

Location of Headlight Adjusters:





1- Horizontal (side-to-side) adjuster
2- Vertical (up and down) adjuster

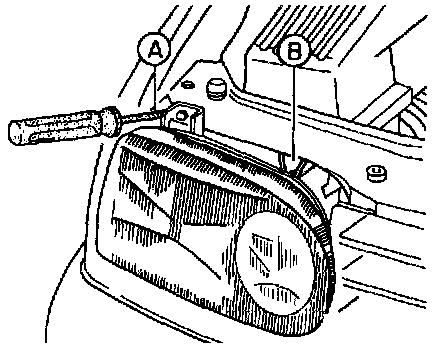

Adjusting Headlights:





A- Vertical aiming adjustment
B- Horizontal aiming adjustment
- To adjust horizontal and vertical headlight aim, turn respective adjuster using Phillips-head screwdriver through slot above headlight.
