Airbag, Front Passenger - Revised

Group: 69

Number: 97-03

Date: May 22, 1997

Subject:
Front Passenger Airbag

Model(s):
Cabrio 1997

File this Technical Bulletin in Repair Manual No.: W42 011 294 115

Supersedes T.B. Group 69 Number 97-02 dated Jan. 21, 1997

Note:
Supersession required due to call out numbering error on page 1.

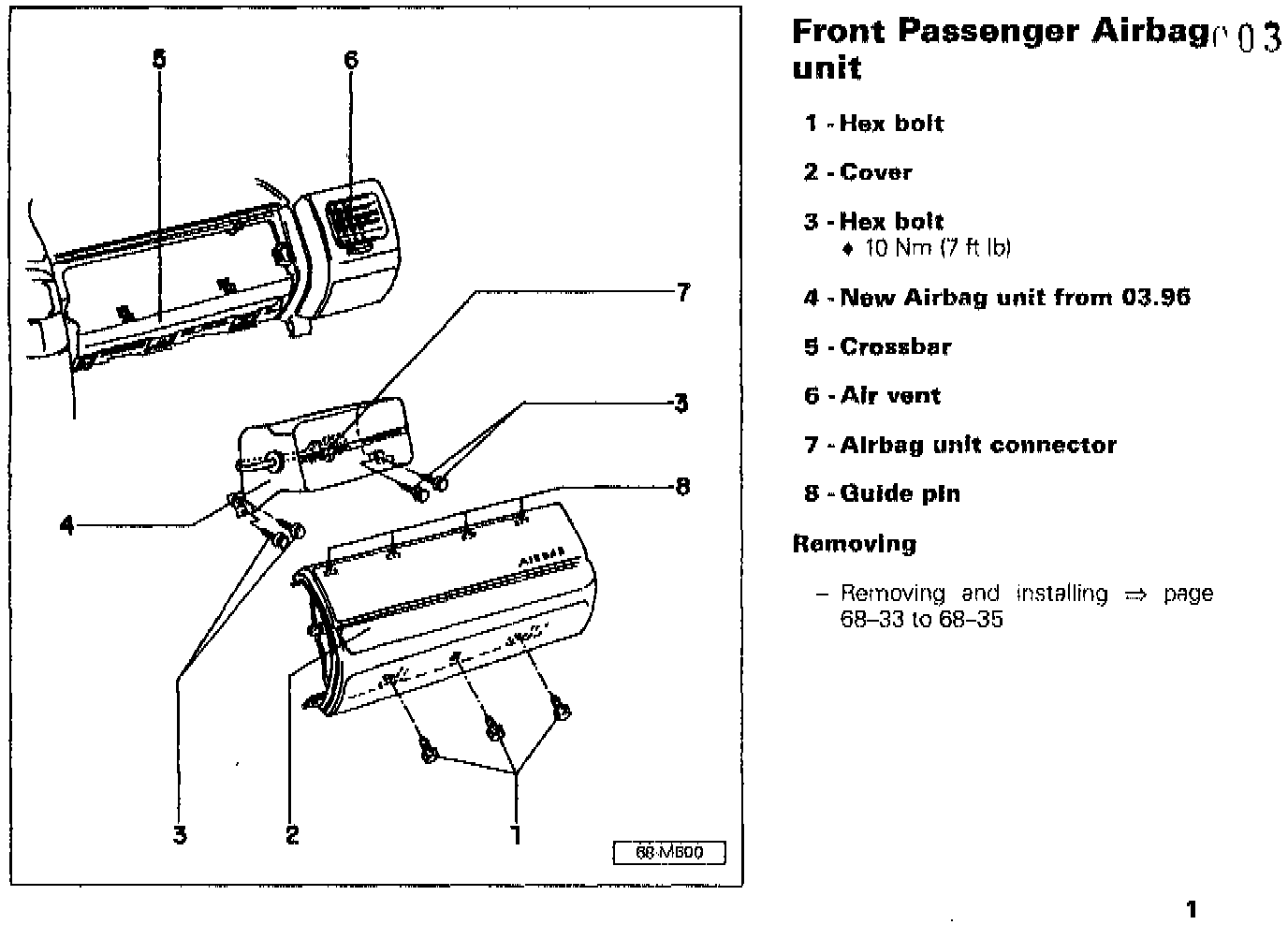

Beginning 03.96 production, a new front passenger airbag unit has been installed.





The Repair Manual page will be integrated in the next Repair Manual update.
