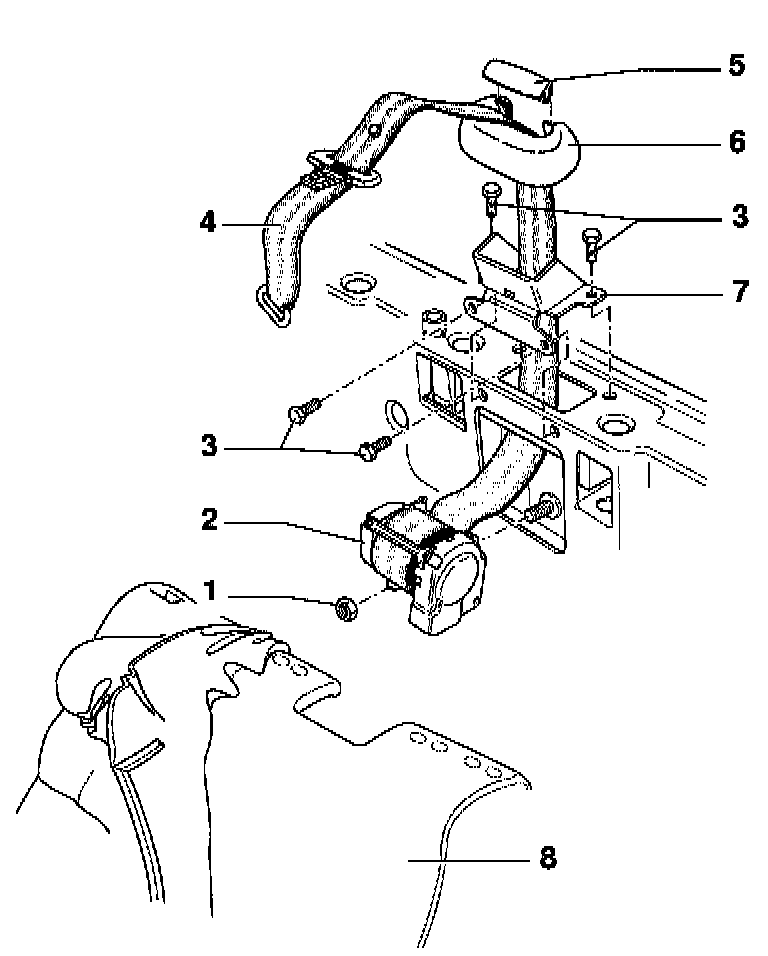

Center Seat Belt, Replacement

1 - Nut
- 40 Nm (30 ft lb)
2 - Belt inertia reel
3 - Cap screws
- 23 Nm (17 ft lb)
4 - Belt
5 - Cover
6 - Belt webbing guide
7 - Belt mounting
8 - Seat backrest
9 - Padding

Belt reel, removing
- Fold seat backrest forward.

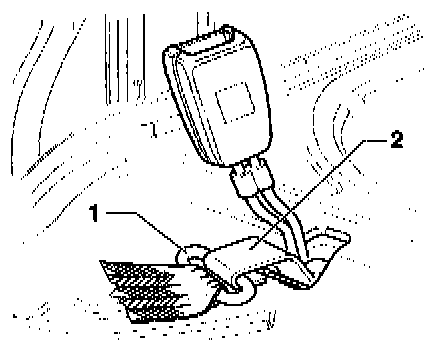

- Unhook seat belt fitting -1- from lower mounting -2-.
- Remove seat backrest.

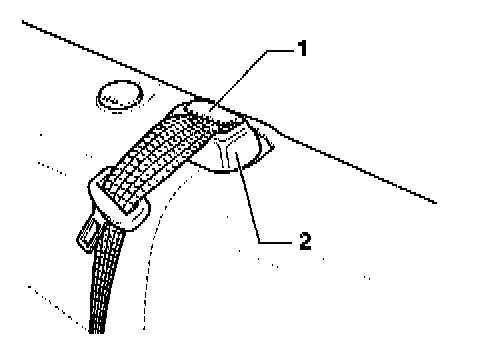

- Pry off cover cap -1- and seat belt guide -2-.
- Remove head restraint guides.
- Release cover and padding for seat backrest.

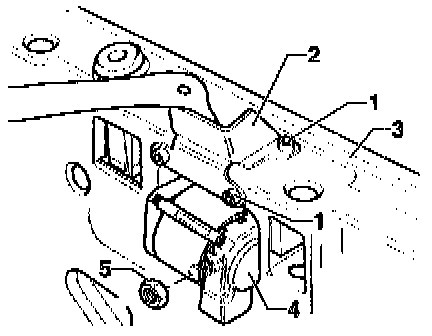

- Remove bolts -1- (Qty. 4) (40 Nm or 30 ft lb) and take seat belt mounting -2- off backrest frame -3-.
- Remove nut -5- (40 Nm or 30 ft lb) and unhook belt inertia reel -4- from backrest frame -3-.
- Guide seat belt with seat belt tongue downwards from backrest frame -3-.

NOTE: The belt reel must be held in the installed position to unreel the seat belt.
