A/T - K1 and K3 Clutches, Pressing During Installation

Group: 37

Number: 97-03

Date: Sept. 22, 1997

File this Technical Bulletin in Repair Manual No.: W42 011 294 120

Subject:
-K1- and -K3- Clutches, Pressing

Model(s):
Golf, GTI, Jetta, Cabrio
w/01M auto trans from 14047

Beginning with transmissions manufactured April 14 1997 (transmission build date 14047), the -K1- and -K3- clutches are pressed together.

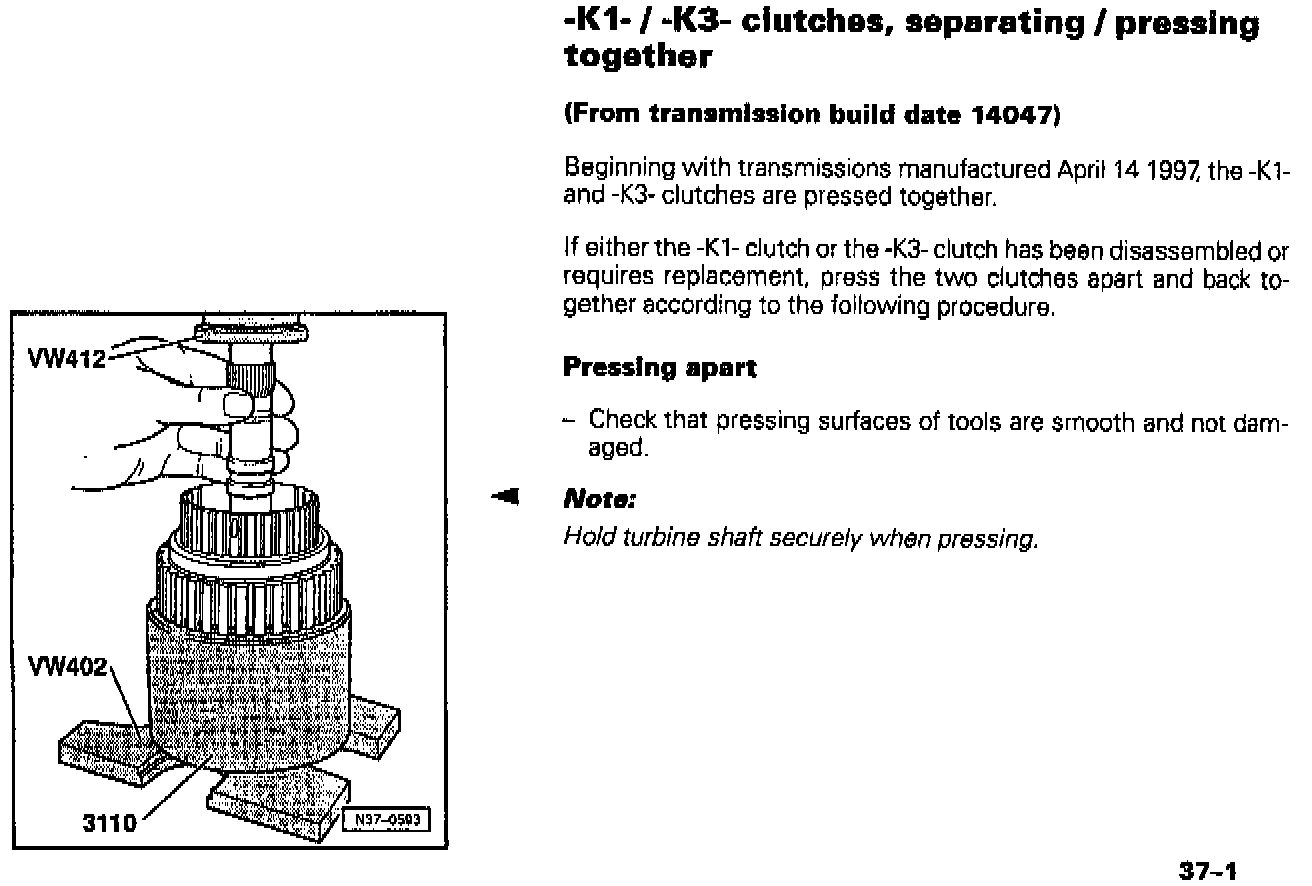

If either the -K1 - clutch or the -K3- clutch has been disassembled or requires replacement, press the two clutches apart and back together according to the procedure.
