Audio System - Static Noise On AM Stations: Overview

91 07 07

May 11, 2007

2002391 Supersedes T.B. Group 91 number 99-04 dated June 9, 1999 due to Warranty information change and inclusion into ElsaWeb.

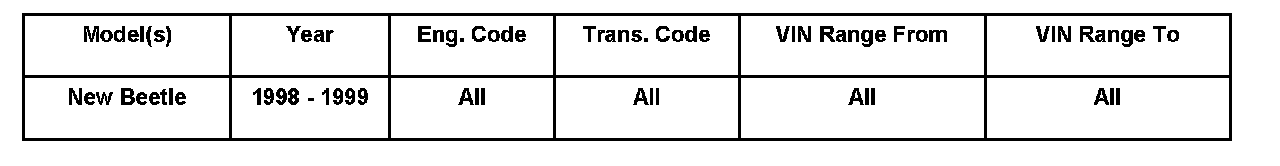

Affected Vehicles

Condition

Static Interference Heard on AM Radio Stations

Customer states radio AM reception poor, switches (brake pedal switch, warning light switch, light switch, etc.) can be heard through radio speakers.

Technical Background

May be caused by antenna cable being routed within wiring harness.

Production Solution

Reroute antenna cable.

Warranty

Information only.

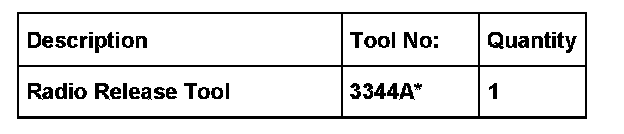

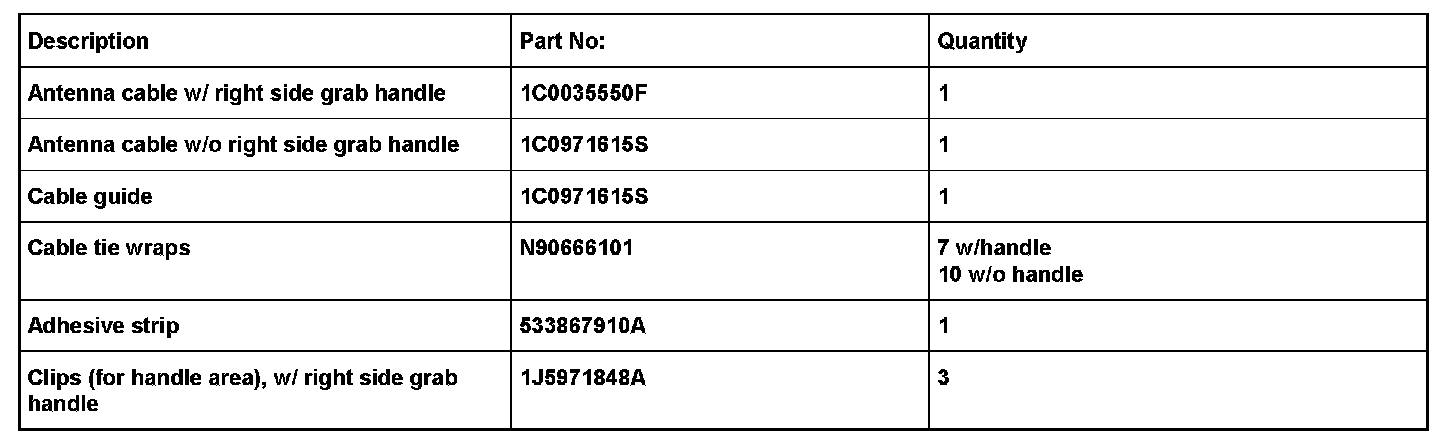

Required Parts and Tools

*Call Volkswagen Tools and Equipment Program (ESQ), which is Equipment Solutions, at 1-800-892-9650 for product.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
