Speakers - Have Too Much Bass Sound
Group: 91Number: 99-05
Date: June 16, 1999
Subject:
Speakers, Have Too Much Bass Sound
Model(s):
New Beetle 1998 -->
Supersedes T.B. Group 01 Number 98-09 dated June 26, 1998
Condition
Customer indicates too much bass sound from speakers.
Service
If a customer prefers less bass than manual adjustment allows.
Using VAG 1551 Scan tool:
Access "Radio" with address word 56 and and advance program using -Q- button to code Control Module according to the table.
CD Changer Coding Coding for vehicles
installed with too much bass
NO 06401 00401
YES 06403 00403

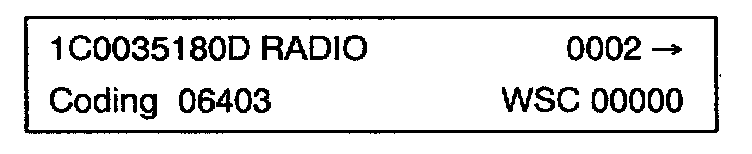

Indicated on display (example only)
- Press --> button.

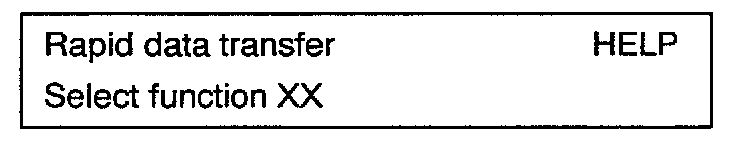

Indicated on display
- Press buttons -0- and -7- to select "Code Control Module" function 07.
- Press -Q- button to confirm input.

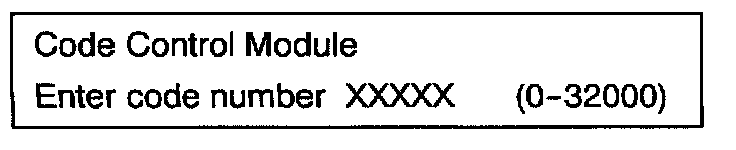

Indicated on display
- Input code number according to table.
Indicated on display (00403 shows coding to give less bass on vehicle with CD changer installed entered).
- Press -Q- button to confirm input.

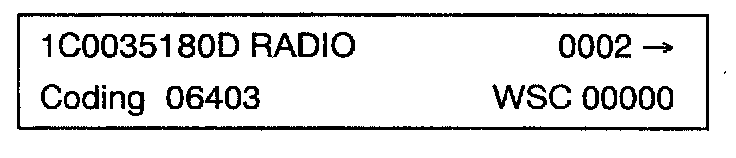

Indicated on display (example only)
- Press --> button.

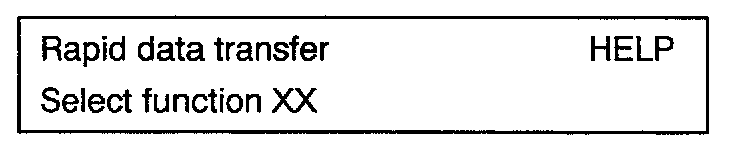

Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.
- Press -Q- button to confirm input.
