Tail Lamp: Service and Repair

Rear Light Bulb Holder, Removing And Installing


NOTE: Apart from the different access required, removing and installing the rear light bulb holders on sedan and wagon models is the same.


Removing
- Fold luggage compartment trim behind rear light to side (sedan) or open rear light side storage compartment flap (wagon).
- Disconnect electrical connector.

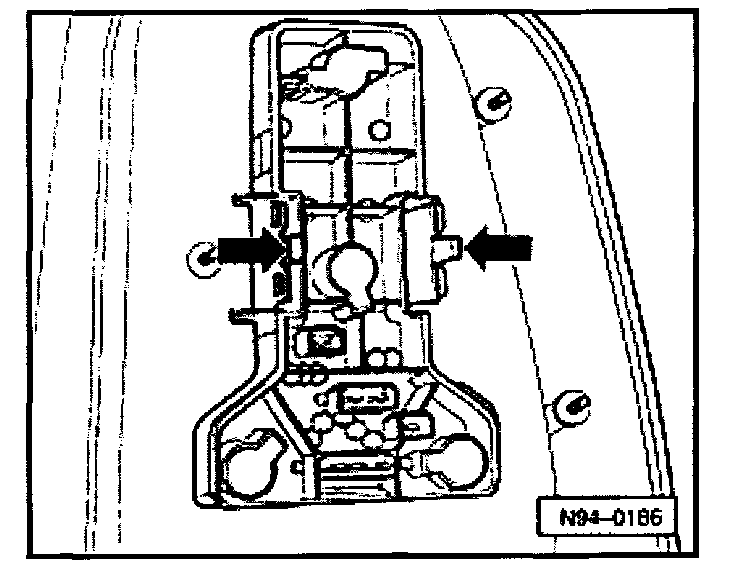

- Depress retainer tabs -arrows- and remove bulb holder to rear.

Installing
Install in reverse order of removal.
