Vacuum Reservoir HVAC: Service and Repair

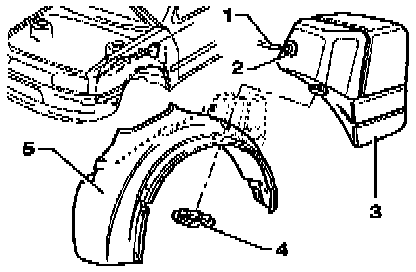

1 - Vacuum hose
- Insert into reservoir 30 mm (1.2 in.)
2 - Rubber grommet
4 - Vacuum reservoir
4 - Nut
5 - Wheel housing liner

- Remove wheel housing liner.
- Remove vacuum hose -1- and nut -4- from reservoir.
- Remove reservoir.
- Install in reverse order of removal.
