Connecting Test Box to Passenger Side Airbag Components-Example

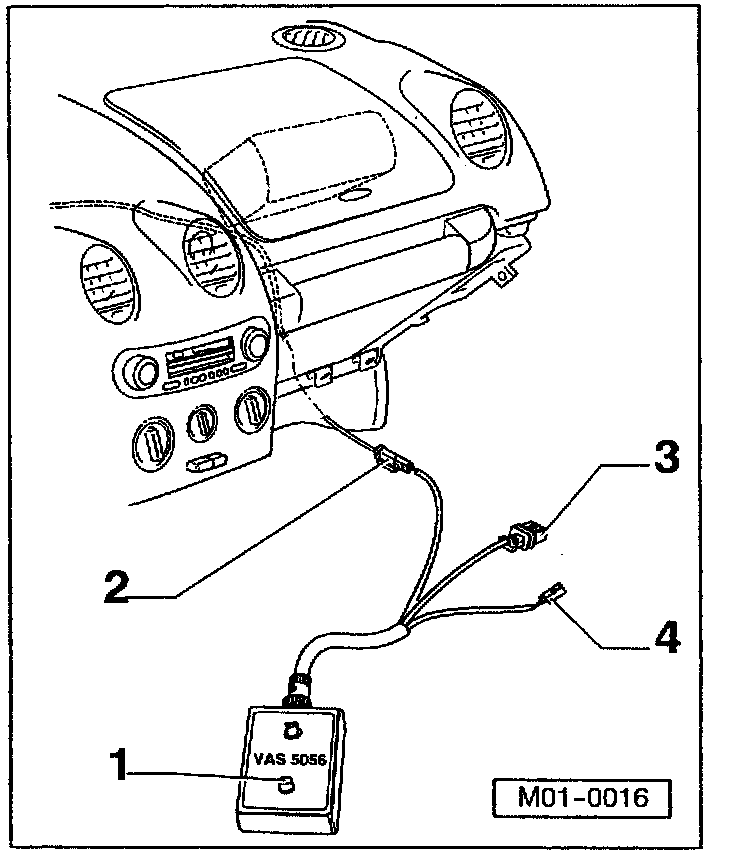

AIRBAG, CONNECTING TEST BOX TO FRONT PASSENGER AIRBAG COMPONENTS, EXAMPLE:

- Remove glove box.





- Separate wiring harness to airbag unit and connect yellow 2-pin connector -2- from VAS 5056/1 to passenger airbag wiring harness.

- View display. See Evaluating display group 001 for specific diagnostic instructions.
